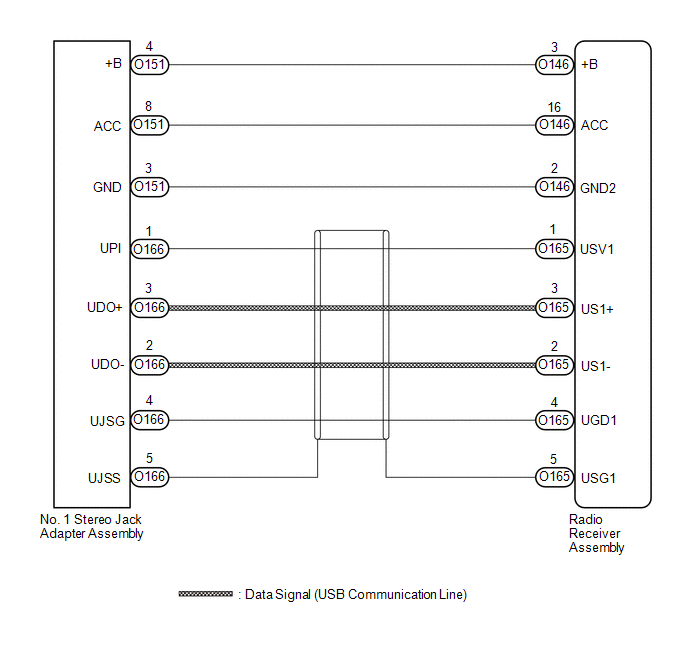

USB Audio System Recognition/Play Error [11/2017 - 09/2020]: Wiring Diagram

GTY837314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
