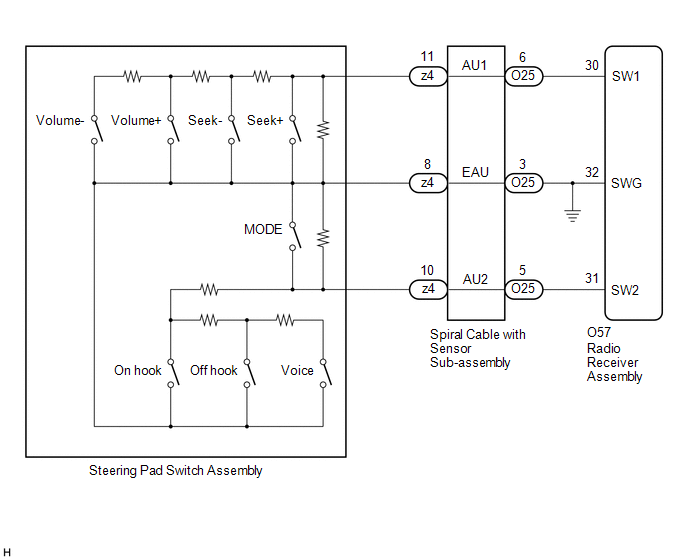

Steering Pad Switch Circuit [09/2014 - 11/2017]: Wiring Diagram

GTY506137

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
