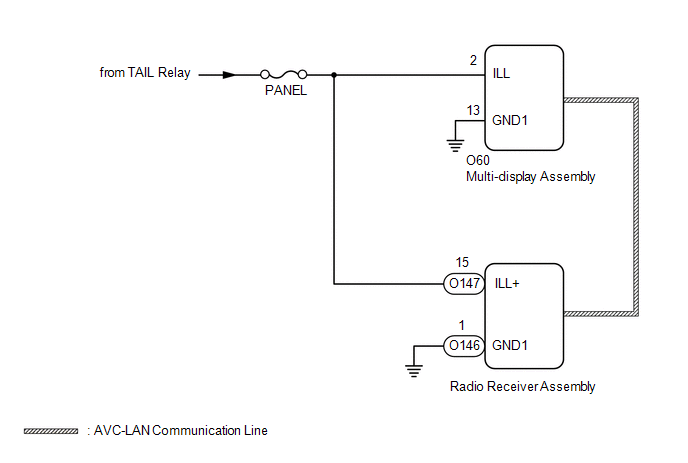

Display does not Dim when Light Control Switch is Turned ON [11/2017 - ]: Wiring Diagram

GTY831274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
