Visual Mute Signal Circuit between Radio Receiver and Multi-display [11/2017 - ]: Wiring Diagram

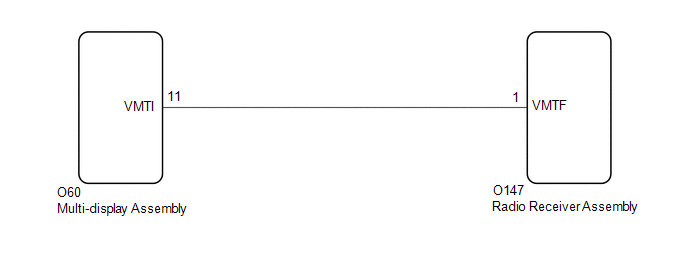

GTY806038
