Microphone Circuit [09/2020 - ]: Wiring Diagram

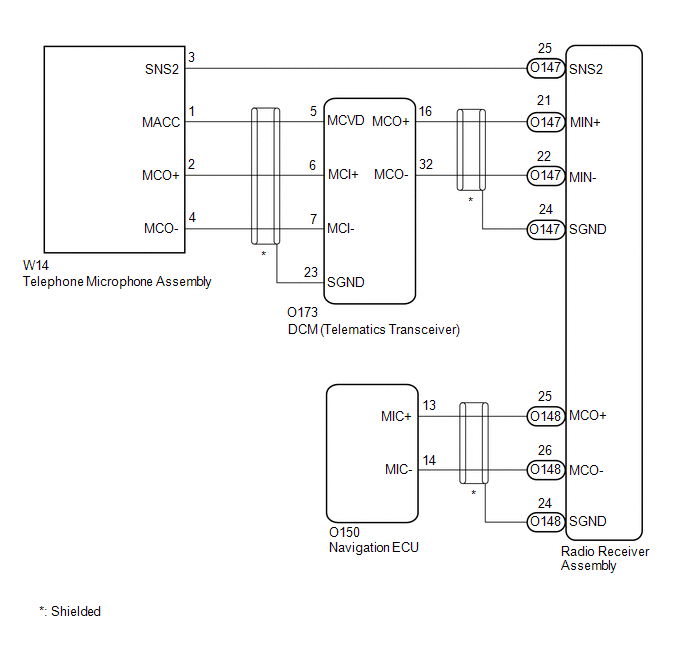

w/ Manual (SOS) Switch

GTY960070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Manual (SOS) Switch

GTY801143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
