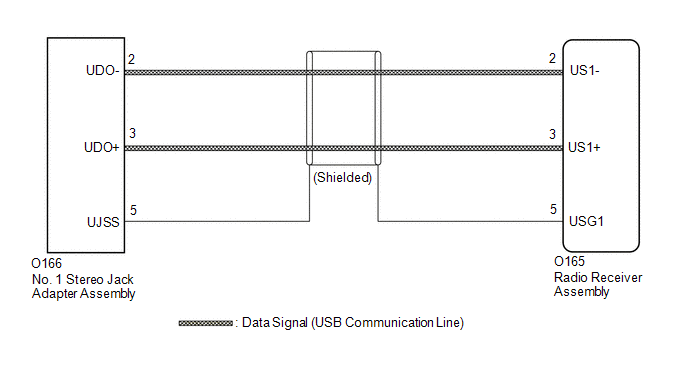

Data Signal Circuit between Radio Receiver and Stereo Jack Adapter [11/2017 - ]: Wiring Diagram

GTY810467

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
