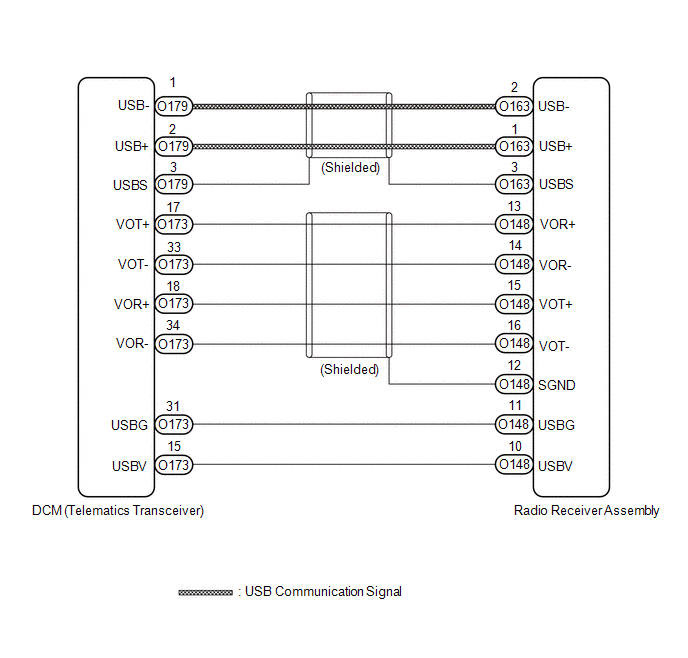

DCM Data Signal Circuit between Radio Receiver and DCM [09/2020 - ]: Wiring Diagram

GTY962142

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
