Components [09/2014 - ]

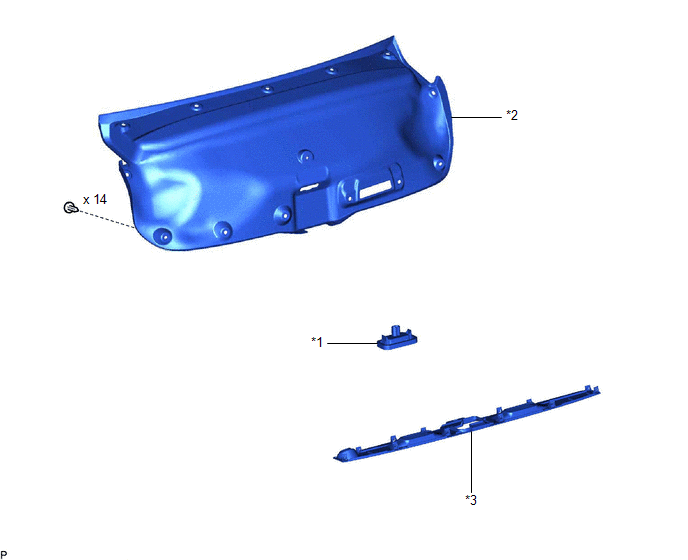

Fig 1: License Plate Light Assembly Replacement Components
GTY502337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LICENSE PLATE LIGHT ASSEMBLY *2 LUGGAGE COMPARTMENT DOOR COVER
*3 NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH - -
