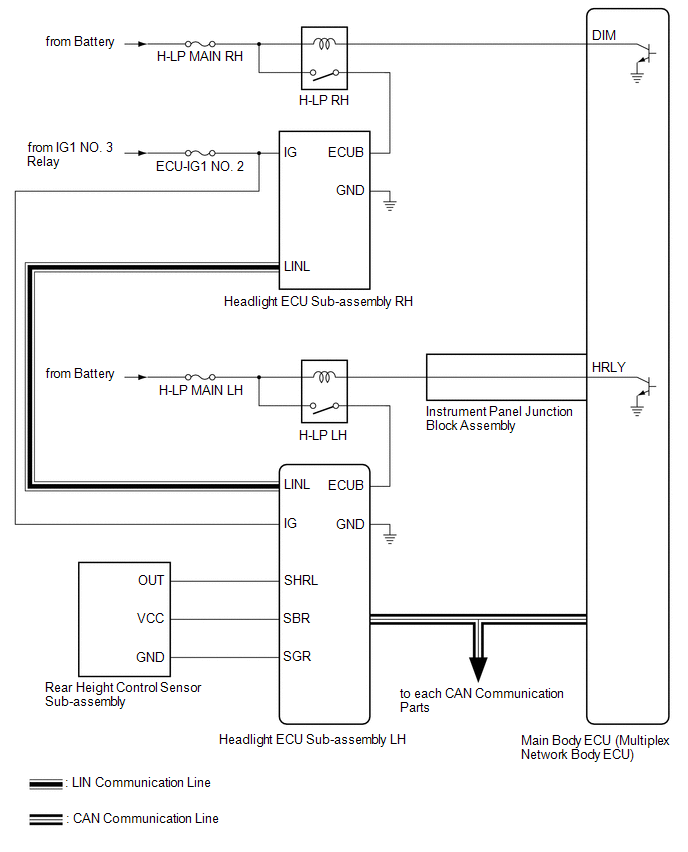

System Diagram [03/2019 - ]

GTY961428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

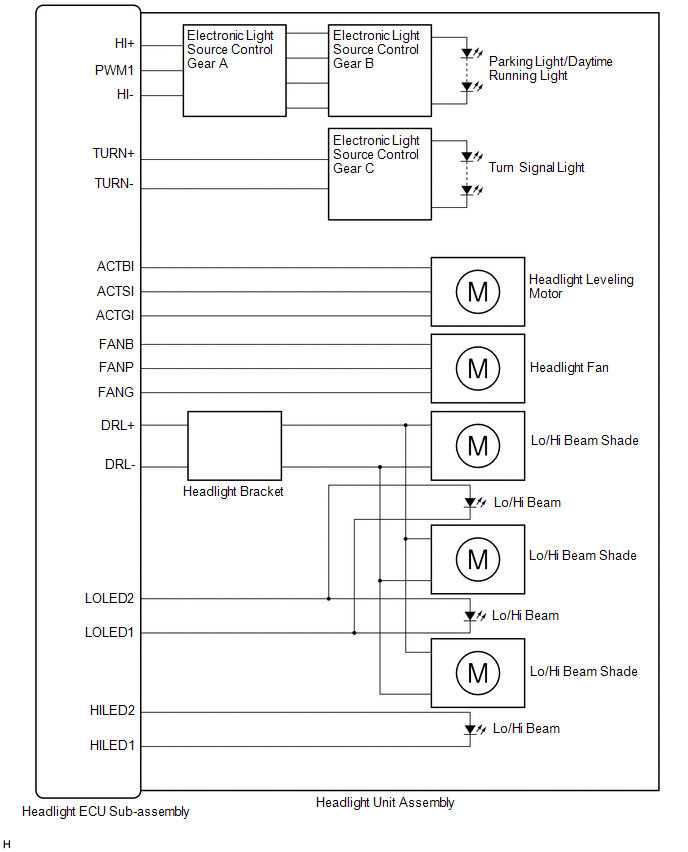

  1. HEADLIGHT ASSEMBLY CIRCUIT (for Triple Beam Headlight)
    GTY961722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

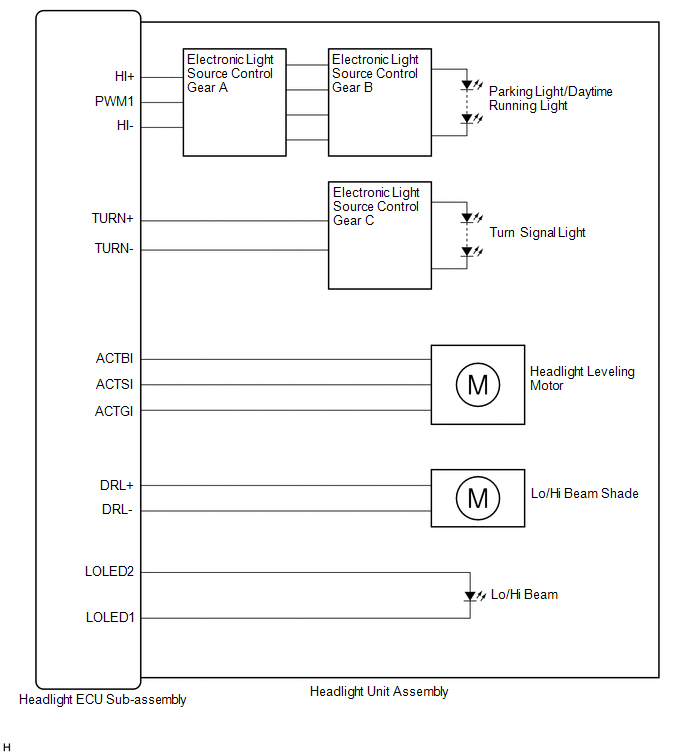

  2. HEADLIGHT ASSEMBLY CIRCUIT (for Single Beam Headlight)
    GTY960960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
