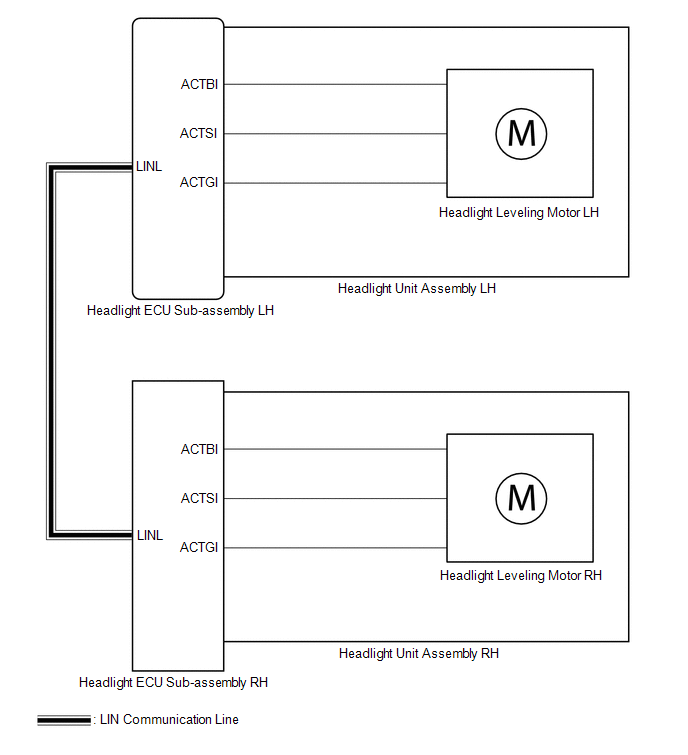

Headlight Beam Level Control Actuator Circuit [03/2019 - ]: Wiring Diagram

GTY959662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
