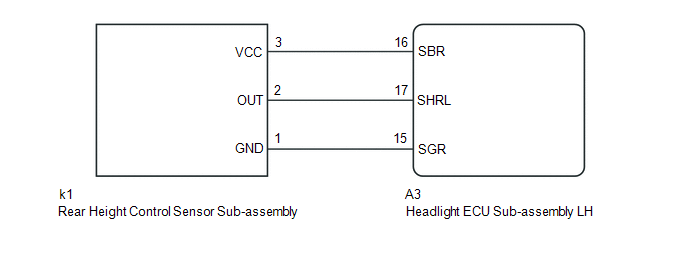

DTC B2416: Height Control Sensor; DTC B241A: Rear Height Control Sensor [03/2019 - ]: Wiring Diagram

GTY958954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
