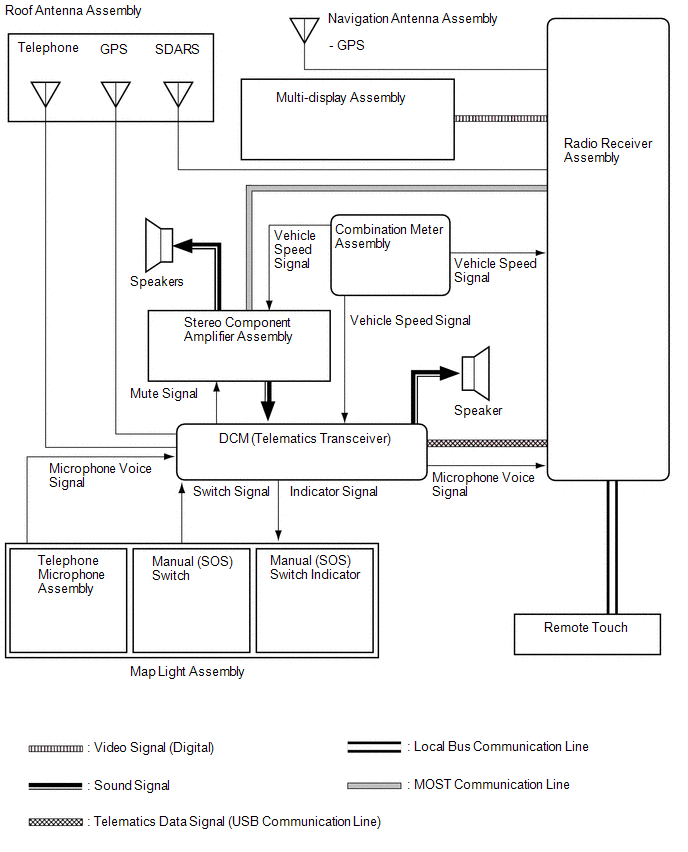

System Diagram [09/2014 - 11/2017]
HINT:
Refer to following systems for details of the system diagram for LEXUS ENFORM System.
- Navigation System
Refer to SYSTEM DIAGRAM [09/2014 - 11/2017]
- Safety Connect System
Refer to SYSTEM DIAGRAM [09/2014 - 11/2017]
