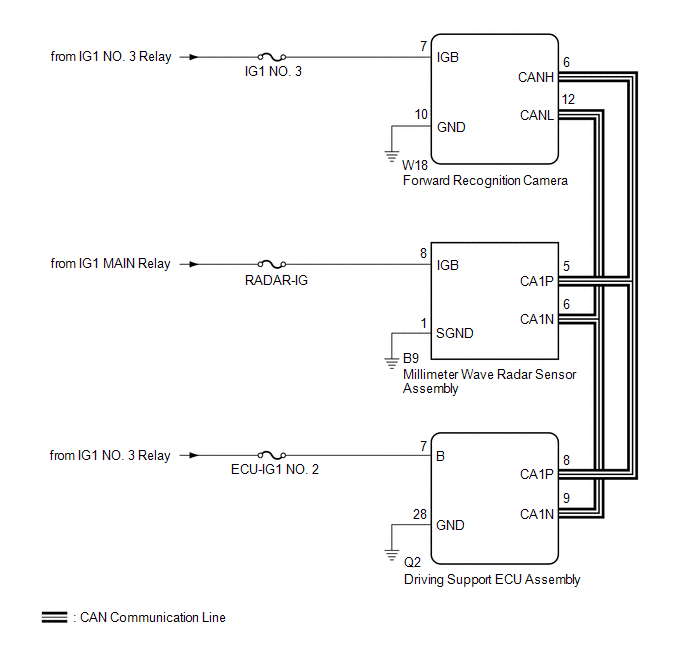

DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor; DTC U1104: Lost Communication with Driving Support ECU [11/2017 - 01/2023]: Wiring Diagram

GTY804404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
