Power Source Circuit [11/2017 - 01/2023]: Procedure
- CHECK HARNESS AND CONNECTOR (POWER SOURCE VOLTAGE)
- Disconnect the W18 forward recognition camera connector.

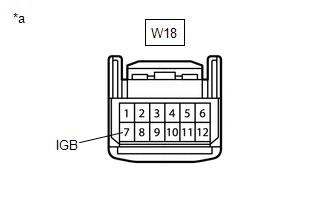

*a Front view of wire harness connector
(to Forward Recognition Camera) - Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition W18-7 (IGB) - Body ground Engine switch on (IG) 11 to 14 V - Turn the engine switch off.
- Connect the W18 forward recognition camera connector.
Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 2
- Disconnect the W18 forward recognition camera connector.
- CHECK HARNESS AND CONNECTOR (FORWARD RECOGNITION CAMERA - BODY GROUND)
- Disconnect the W18 forward recognition camera connector.

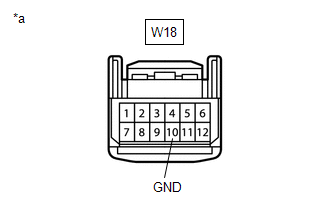

*a Front view of wire harness connector
(to Forward Recognition Camera) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition W18-10 (GND) - Body ground Always Below 1 Ω - Connect the W18 forward recognition camera connector.
Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [11/2017 - 01/2023]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Disconnect the W18 forward recognition camera connector.
