Millimeter Wave Radar Sensor Power Source Circuit [09/2014 - 11/2017]: Procedure

1. Disconnect the B7 millimeter wave radar sensor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

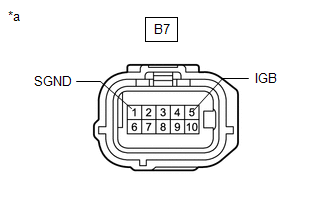

   *a	Front view of wire harness connector (to Millimeter Wave Radar Sensor Assembly)

2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   B7-5 (IGB) - Body ground	Engine switch on (IG)	11 to 14 V
   B7-5 (IGB) - Body ground	Engine switch off	Below 1 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B7-1 (SGND) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [09/2014 - 11/2017]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - BATTERY AND BODY GROUND)
