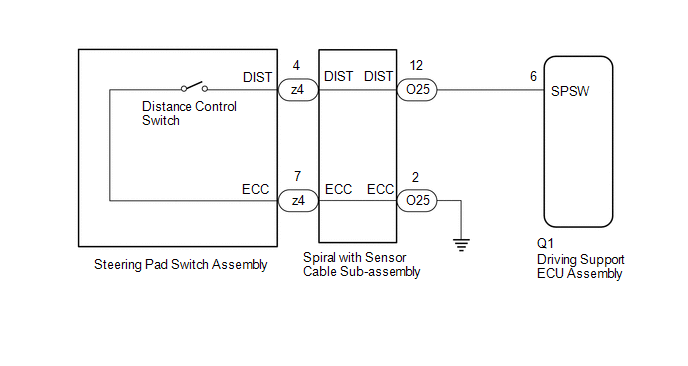

Distance Control Switch Circuit [09/2014 - 11/2017]: Wiring Diagram

GTY508713

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
