Terminals Of Ecu [09/2014 - 08/2016]
NOTE:
- After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [09/2014 - 11/2017]
- Turn the engine switch off before measuring the resistances between CAN main bus lines and between CAN branch lines.
- Turn the engine switch off before inspecting CAN bus lines for a short to ground.
- Before measuring the resistance of the CAN bus, turn the engine switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
- This service information describes the standard values for all CAN related components.
HINT:
- Operating the engine switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.
- Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.
- NO. 1 CAN JUNCTION CONNECTOR
- Check the No. 1 CAN junction connector.

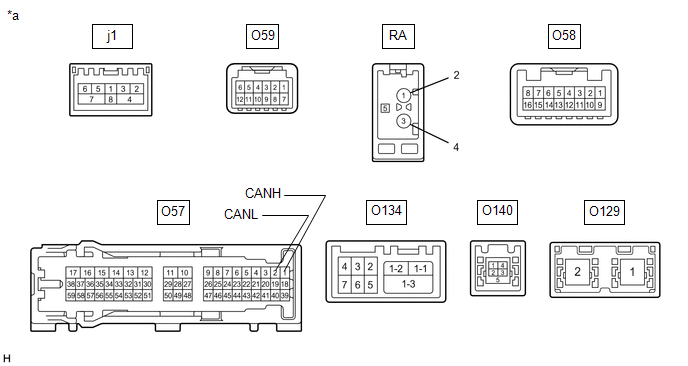

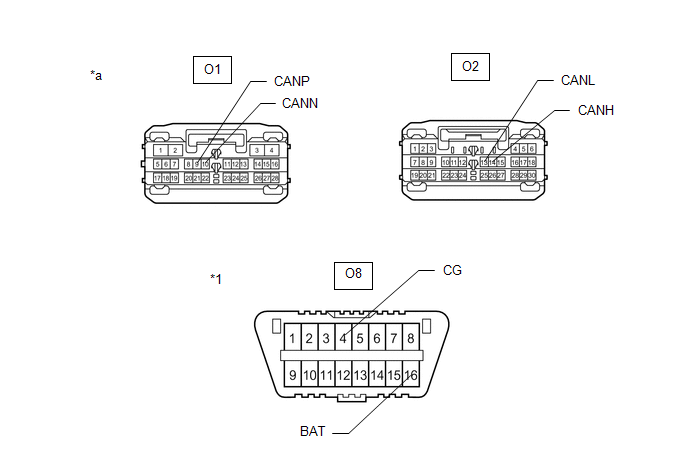

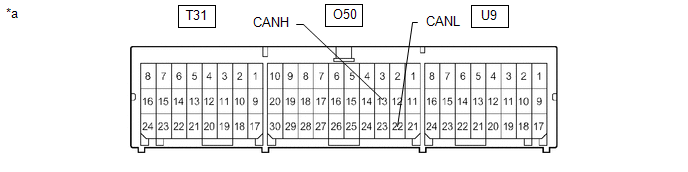

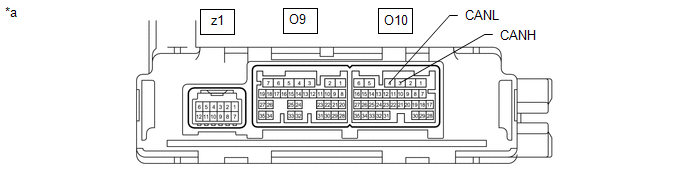

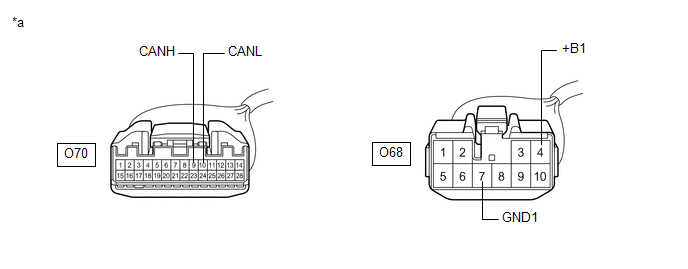

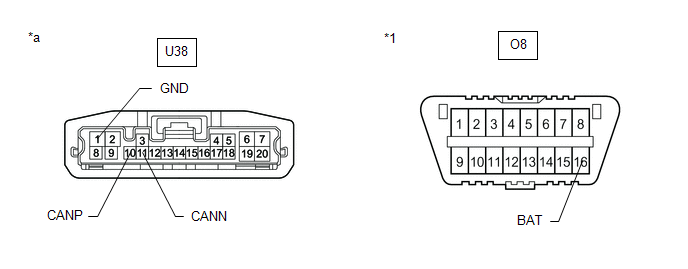

- Connection diagram

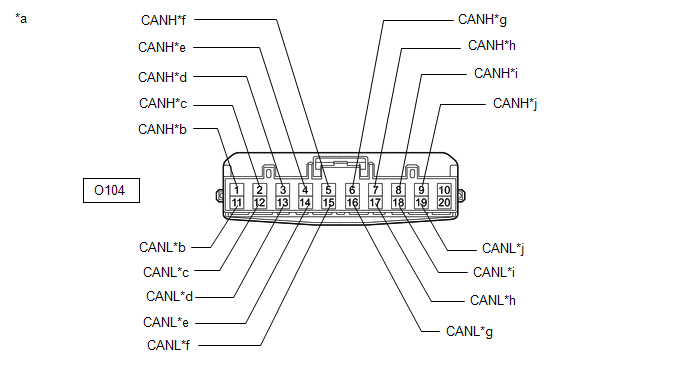

*a Front view of wire harness connector
(to No. 1 CAN Junction Connector)*b to No. 2 CAN Junction Connector
(for V Bus)*c to Combination Meter Assembly
(for V Bus)*d to Radio Receiver Assembly
(for V Bus)*e to Network Gateway ECU
(for V Bus)*f to Air Conditioning Amplifier Assembly
(for V Bus)*g to Stereo Component Equalizer Assembly
(w/ ASC System)
(for V Bus)*h to Certification ECU (Smart Key ECU Assembly)
(for V Bus)*i to Torque Vectoring Differential ECU Assembly
(w/ Torque Vectoring Differential System)
(for V Bus)*j to Power Steering ECU Assembly
(for V Bus) - Check the connection diagram of the components which are connected to the No. 1 CAN junction connector.
Terminal No. (Symbol) Wiring Color Connected to O104-1 (CANH) L No. 2 CAN junction connector
(for V bus)O104-11 (CANL) B O104-2 (CANH) LG Combination meter assembly
(for V bus)O104-12 (CANL) B O104-3 (CANH) R Radio receiver assembly
(for V bus)O104-13 (CANL) B O104-4 (CANH) BE Network gateway ECU
(for V bus)O104-14 (CANL) B O104-5 (CANH) P Air conditioning amplifier assembly
(for V bus)O104-15 (CANL) B O104-6 (CANH) G Stereo component equalizer assembly*1
(for V bus)O104-16 (CANL) B O104-7 (CANH) W Certification ECU (smart key ECU assembly)
(for V bus)O104-17 (CANL) B O104-8 (CANH) P Torque vectoring differential ECU assembly*2
(for V bus)O104-18 (CANL) B O104-9 (CANH) G Power steering ECU assembly
(for V bus)O104-19 (CANL) B - *1: w/ ASC System
- *2: w/ Torque Vectoring Differential System
- Connection diagram
- Check the No. 1 CAN junction connector.
- NO. 2 CAN JUNCTION CONNECTOR
- Check the No. 2 CAN junction connector.
- Connection diagram

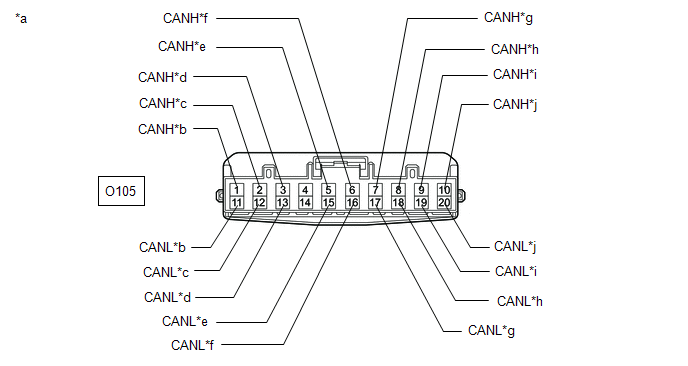

*a Front view of wire harness connector
(to No. 2 CAN Junction Connector)*b to No. 1 CAN Junction Connector
(for V Bus)*c to Main Body ECU (Multiplex Network Body ECU)
(for V Bus)*d to ECM
(for V Bus)*e to Airbag ECU Assembly
(for V Bus)*f to Yaw Rate Sensor
(for V Bus)*g to Spoiler Control ECU Assembly
(for V Bus)*h to DLC3
(for V Bus)*i to Steering Sensor
(for V Bus)*j to Skid Control ECU (Brake Actuator Assembly)
(for V Bus) - Check the connection diagram of the components which are connected to the No. 2 CAN junction connector.
Terminal No. (Symbol) Wiring Color Connected to O105-1 (CANH) L No. 1 CAN junction connector
(for V bus)O105-11 (CANL) B O105-2 (CANH) Y Main body ECU (multiplex network body ECU)
(for V bus)O105-12 (CANL) B O105-3 (CANH) R ECM
(for V bus)O105-13 (CANL) B O105-5 (CANH) BE Airbag ECU assembly
(for V bus)O105-15 (CANL) B O105-6 (CANH) G Yaw rate sensor
(for V bus)O105-16 (CANL) B O105-7 (CANH) GR Spoiler control ECU
(for V bus)O105-17 (CANL) B O105-8 (CANH) W DLC3
(for V bus)O105-18 (CANL) B O105-9 (CANH) P Steering sensor
(for V bus)O105-19 (CANL) B O105-10 (CANH) SB Skid control ECU (brake actuator assembly)
(for V bus)O105-20 (CANL) B
- Connection diagram
- Check the No. 2 CAN junction connector.
- NO. 3 CAN JUNCTION CONNECTOR
- Check the No. 3 CAN junction connector.
- Connection diagram

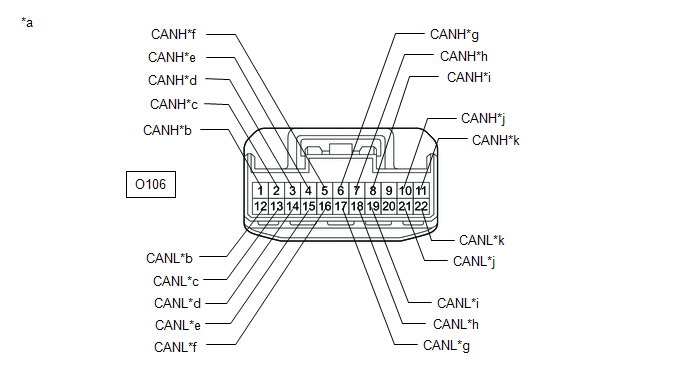

*a Front view of wire harness connector
(to No. 3 CAN Junction Connector)*b to Multiplex Tilt and Telescopic ECU
(for Sub Bus 1)*c to No. 7 CAN Junction Connector
(for Sub Bus 1)*d to Main Body ECU (Multiplex Network Body ECU)
(for Sub Bus 1)*e to Outer Mirror Control ECU Assembly (for Driver side)
(w/ Seat Position Memory System)
(for Sub Bus 1)*f to Headlight Light Control ECU Sub-assembly LH
(for Triple Beam Headlight)
(for Sub Bus 1)*g to Position Control ECU and Switch Assembly LH
(w/ Seat Position Memory System)
(for Sub Bus 1)*h to No. 4 CAN Junction Connector
(for Sub Bus 2)*i to No. 9 CAN Junction Connector
(for Sub Bus 2)*j to Driving Support ECU Assembly
(w/ Pre-collision System)
(for Sub Bus 2)*k to Headlight Leveling ECU Assembly
(for Single Beam Headlight)
(for Sub Bus 2)- - - Check the connection diagram of the components which are connected to the No. 3 CAN junction connector.
Terminal No. (Symbol) Wiring Color Connected to O106-1 (CANH) G Multiplex tilt and telescopic ECU
(for Sub bus 1)O106-12 (CANL) B O106-2 (CANH) L No. 7 CAN junction connector
(for Sub bus 1)O106-13 (CANL) B O106-3 (CANH) P Main body ECU (multiplex network body ECU)
(for Sub bus 1)O106-14 (CANL) B O106-4 (CANH) W Outer mirror control ECU assembly (for driver side)*1
(for Sub bus 1)O106-15 (CANL) B O106-5 (CANH) V Headlight light control ECU sub-assembly LH*2
(for Sub bus 1)O106-16 (CANL) B O106-6 (CANH) R Position control ECU and switch assembly LH*1
(for Sub bus 1)O106-17 (CANL) B O106-7 (CANH) L No. 4 CAN junction connector
(for Sub bus 2)O106-18 (CANL) B O106-8 (CANH) LG No. 9 CAN junction connector
(for Sub bus 2)O106-19 (CANL) B O106-10 (CANH) G Driving support ECU assembly*3
(for Sub bus 2)O106-21 (CANL) B O106-11 (CANH) LG Headlight Leveling ECU Assembly*4
(for Sub bus 2)O106-22 (CANL) B - *1: w/ Seat Position Memory System
- *2: for Triple Beam Headlight
- *3: w/ Pre-collision System
- *4: for Single Beam Headlight
- Connection diagram
- Check the No. 3 CAN junction connector.
- NO. 4 CAN JUNCTION CONNECTOR
- Check the No. 4 CAN junction connector.

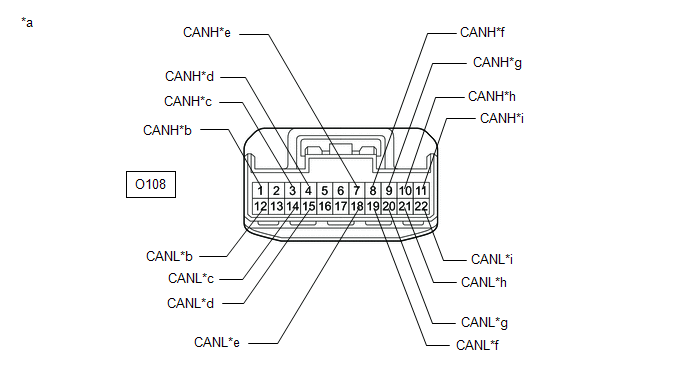

- Connection diagram
*a Front view of wire harness connector
(to No. 4 CAN Junction Connector)*b to ECM
(for V3 Bus)*c to Roll Rate and Vertical Acceleration Sensor
(for V3 Bus)*d to No. 6 CAN Junction Connector
(for V3 Bus)*e to Telematics Transceiver
(for LEXUS ENFORM Remote Compatible Type)
(for Sub bus 2)*f to Option Connector (Bus Buffer ECU)
(for Sub bus 2)*g to No. 3 CAN Junction Connector
(for Sub bus 2)*h to Network Gateway ECU
(for Sub bus 2)*i to Clearance Warning ECU Assembly
(w/ Intuitive Parking Assist System)
(for Sub bus 2)- - - Check the connection diagram of the components which are connected to the No. 4 CAN junction connector.
Terminal No. (Symbol) Wiring Color Connected to O108-1 (CANH) L ECM
(for V3 bus)O108-12 (CANL) B O108-3 (CANH) G Roll rate and vertical acceleration sensor
(for V3 bus)O108-14 (CANL) B O108-4 (CANH) R No. 6 CAN junction connector
(for V3 bus)O108-15 (CANL) B O108-7 (CANH) SB Telematics transceiver*1
(for Sub bus 2)O108-18 (CANL) B O108-8 (CANH) R to Option connector (bus buffer ECU)
(for Sub bus 2)O108-19 (CANL) B O108-9 (CANH) L No. 3 CAN junction connector
(for Sub bus 2)O108-20 (CANL) B O108-10 (CANH) R Network gateway ECU
(for Sub bus 2)O108-21 (CANL) B O108-11 (CANH) SB Clearance warning ECU assembly*2 O108-22 (CANL) B - *1: for Lexus Enform Remote Compatible Type
- *2: w/ Intuitive Parking Assist System
- Connection diagram
- Check the No. 4 CAN junction connector.
- NO. 5 CAN JUNCTION CONNECTOR
- Check the No. 5 CAN junction connector.
- Connection diagram
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector)*b to No. 7 CAN Junction Connector
(for Sub Bus 1)*c to Position Control ECU and Switch Assembly RH
(w/ Seat Position Memory System)
(for Sub Bus 1)*d to Outer Mirror Control ECU Assembly (for Front Passenger Side)
(w/ Seat Position Memory System)
(for Sub Bus 1)*e to No. 1 CAN Junction Terminal
(for Sub Bus 1)- - - Check the connection diagram of the components which are connected to the No. 5 CAN junction connector.
Terminal No. (Symbol) Wiring Color Connected to T32-7 (CANH) LG No. 7 CAN junction connector
(for Sub bus 1)T32-18 (CANL) B T32-9 (CANH) R Position control ECU and switch assembly RH*
(for Sub bus 1)T32-20 (CANL) B T32-10 (CANH) W Outer mirror control ECU assembly (for front passenger side)*
(for Sub bus 1)T32-21 (CANL) B T32-11 (CANH) P No. 1 CAN junction terminal
(for Sub bus 1)T32-22 (CANL) B - *: w/ Seat Position Memory System
- Connection diagram
- Check the No. 5 CAN junction connector.
- NO. 6 CAN JUNCTION CONNECTOR
- Check the No. 6 CAN junction connector.
- Connection diagram
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector)*b to Torque Vectoring Differential ECU Assembly
(w/ Torque Vectoring Differential System)
(for V3 Bus)*c to Skid Control ECU (Brake Actuator Assembly)
(for V3 Bus)*d to No. 4 CAN Junction Connector
(for V3 Bus) - Check the connection diagram of the components which are connected to the No. 6 CAN junction connector.
Terminal No. (Symbol) Wiring Color Connected to T44-2 (CANH) V Torque vectoring differential ECU assembly*
(for V3 bus)T44-13 (CANL) B T44-3 (CANH) LG Skid control ECU (brake actuator assembly)
(for V3 bus)T44-14 (CANL) B T44-4 (CANH) R No. 4 CAN junction connector
(for V3 bus)T44-15 (CANL) B - *: w/ Torque Vectoring Differential System
- Connection diagram
- Check the No. 6 CAN junction connector.
- NO. 7 CAN JUNCTION CONNECTOR
- Check the No. 7 CAN junction connector.
- Connection diagram

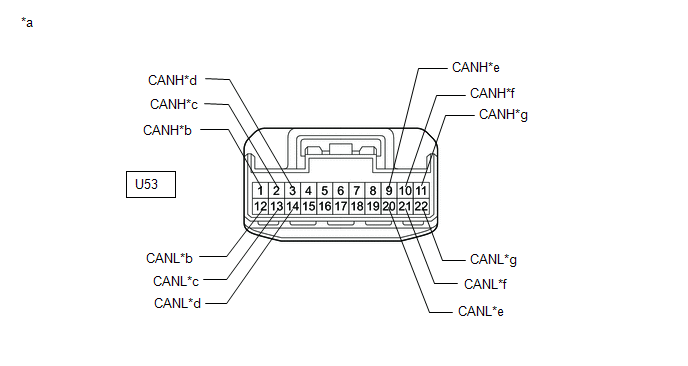

*a Front view of wire harness connector
(to No. 7 CAN Junction Connector)*b to No. 9 CAN Junction Connector
(for Sub Bus 2)*c to No. 2 CAN Junction Terminal
(for Sub Bus 2)*d to Blind Spot Monitor Sensor LH
(w/ Blind Spot Monitor System)
(for Sub Bus 2)*e to No. 5 CAN Junction Connector
(for Sub Bus 1)*f to No. 3 CAN Junction Connector
(for Sub Bus 1)*g to Rear Television Camera Assembly
(w/ Parking Assist Monitor System without Parallel Parking Assist Function)
(for Sub Bus 1)- - - Check the connection diagram of the components which are connected to the No. 7 CAN junction connector.
Terminal No. (Symbol) Wiring Color Connected to U53-1 (CANH) BE No. 9 CAN junction connector
(for Sub bus 2)U53-12 (CANL) B U53-2 (CANH) V No. 2 CAN junction terminal
(for Sub bus 2)U53-13 (CANL) B U53-3 (CANH) R Blind spot monitor sensor LH*1
(for Sub bus 2)U53-14 (CANL) B U53-9 (CANH) LG No. 5 CAN junction connector
(for Sub bus 1)U53-20 (CANL) B U53-10 (CANH) L No. 3 CAN junction connector
(for Sub bus 1)U53-21 (CANL) B U53-11 (CANH) L Rear television camera assembly*2
(for Sub bus 1)U53-22 (CANL) B - *1: w/ Blind Spot Monitor System
- *2: w/ Parking Assist Monitor System without Parallel Parking Assist Function
- Connection diagram
- Check the No. 7 CAN junction connector.
- NO. 9 CAN JUNCTION CONNECTOR
- Check the No. 9 CAN junction connector.
- Connection diagram
*a Front view of wire harness connector
(to No. 9 CAN Junction Connector)*b to No. 3 CAN Junction Connector
(for Sub Bus 2)*c to No. 7 CAN Junction Connector
(for Sub Bus 2)*d to Lane Departure Warning Camera
(w/ Lane Departure Alert System)
(for Sub Bus 2) - Check the connection diagram of the components which are connected to the No. 9 CAN junction connector.
Terminal No. (Symbol) Wiring Color Connected to W13-1 (CANH) LG No. 3 CAN junction connector
(for Sub bus 2)W13-7 (CANL) B W13-2 (CANH) BE No. 7 CAN junction connector
(for Sub bus 2)W13-8 (CANL) B W13-3 (CANH) R Lane departure warning camera*
(for Sub bus 2)W13-9 (CANL) B - *: w/ Lane Departure Alert System
- Connection diagram
- Check the No. 9 CAN junction connector.
- NO. 1 CAN JUNCTION TERMINAL
- Check the No. 1 CAN junction terminal.
- Connection diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Front view of wire harness connector
(to No. 1 CAN Junction Terminal)*b to No. 5 CAN Junction Connector
(for Sub Bus 1) - Check the connection diagram of the components which are connected to the No. 1 CAN junction terminal.
Terminal No. (Symbol) Wiring Color Connected to O101-3 (CANH) P No. 5 CAN junction connector
(for Sub bus 1)O101-2 (CANL) B
- Connection diagram
- Check the No. 1 CAN junction terminal.
- NO. 2 CAN JUNCTION TERMINAL
- Check the No. 2 CAN junction terminal.
- Connection diagram
*a Front view of wire harness connector
(to No. 2 CAN Junction Terminal)*b to No. 7 CAN Junction Connector
(for Sub Bus 2) - Check the connection diagram of the components which are connected to the No. 2 CAN junction terminal.
Terminal No. (Symbol) Wiring Color Connected to O102-3 (CANH) V No. 7 CAN junction connector
(for Sub bus 2)O102-2 (CANL) B
- Connection diagram
- Check the No. 2 CAN junction terminal.
- DLC3
- Disconnect the cable from the negative (-) battery terminal.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O8-6 (CANH) - O8-14 (CANL) W - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O8-6 (CANH) - O8-4 (CG) W - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O8-14 (CANL) - O8-4 (CG) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O8-6 (CANH) - O8-16 (BAT) W - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O8-14 (CANL) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- ECM

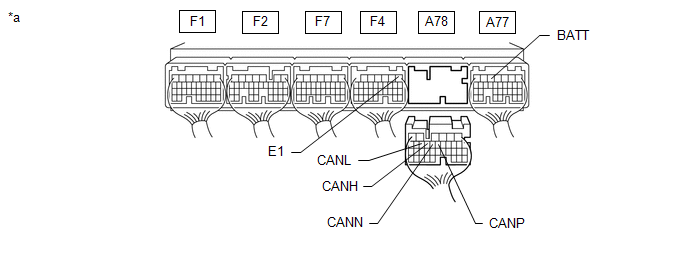

*a Component without harness connected
(ECM)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the A78 ECM connector.
- Measure the resistance according to the value(s) in the table below.

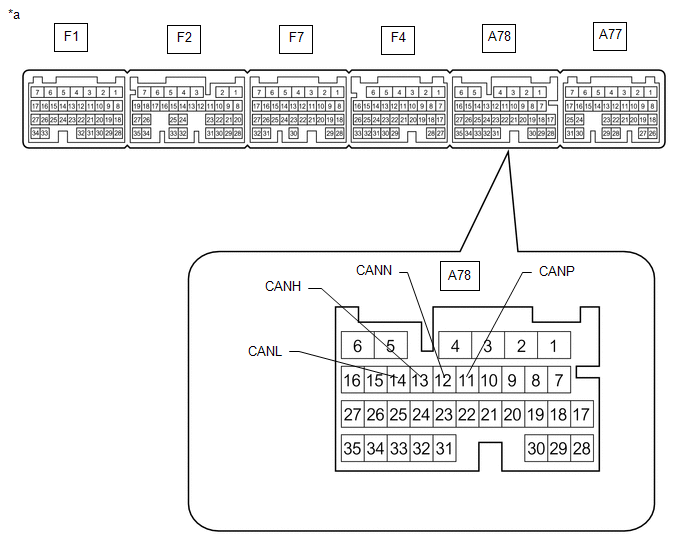

*a Rear view of wire harness connector
(to ECM)- - Standard Resistance
V BUS MAIN LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A78-13 (CANH) - A78-14 (CANL) R - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 108 to 132 Ω A78-13 (CANH) - F4-1 (E1) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A78-14 (CANL) - F4-1 (E1) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A78-13 (CANH) - A77-5 (BATT) R - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A78-14 (CANL) - A77-5 (BATT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher V3 BUS MAIN LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A78-11 (CANP) - A78-12 (CANN) L - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 108 to 132 Ω A78-11 (CANP) - F4-1 (E1) L - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A78-12 (CANN) - F4-1 (E1) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A78-11 (CANP) - A77-5 (BATT) L - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A78-12 (CANN) - A77-5 (BATT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- COMBINATION METER ASSEMBLY
*a Component without harness connected
(Combination Meter Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O3 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.

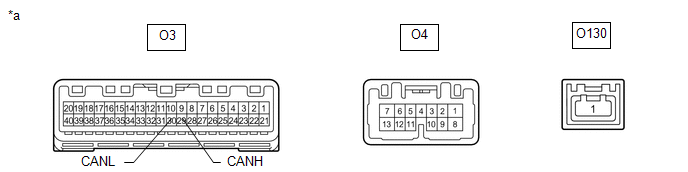

*a Front view of wire harness connector
(to Combination Meter Assembly)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O3-29 (CANH) - O3-30 (CANL) LG - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 108 to 132 Ω O3-29 (CANH) - O3-31 (ES) LG - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O3-30 (CANL) - O3-31 (ES) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O3-29 (CANH) - O3-22 (B) LG - LG HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O3-30 (CANL) - O3-22 (B) B - LG LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

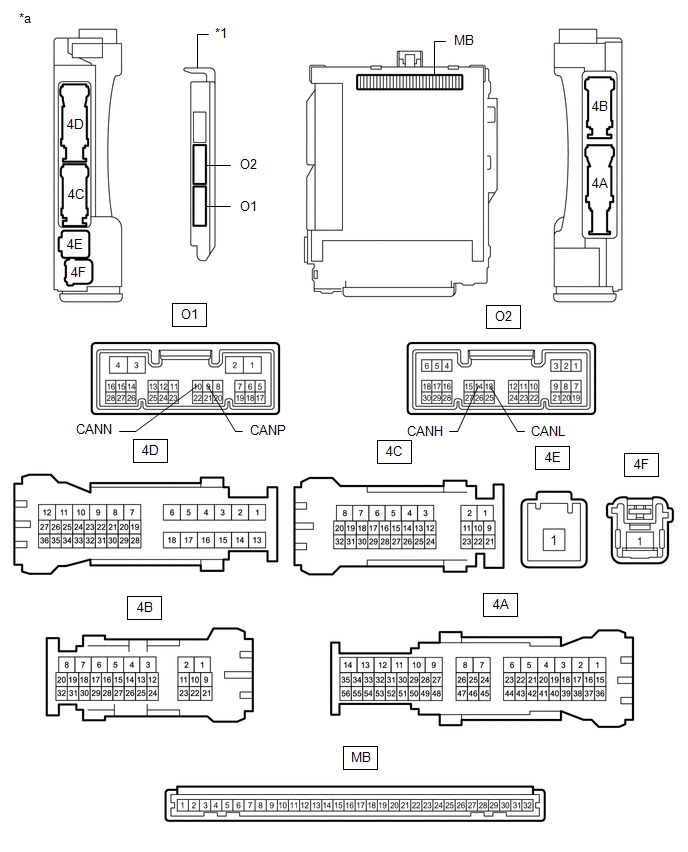

*1 Main Body ECU (Multiplex Network Body ECU) - - *a Component without harness connected
(Instrument Panel Junction Block Assembly and Main Body ECU (Multiplex Network Body ECU))- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O1 or O2 main body ECU (multiplex network body ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Main Body ECU (Multiplex Network Body ECU))- - Standard Resistance
V BUS BRANCH LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O2-14 (CANH) - O2-13 (CANL) Y - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O2-14 (CANH) - O8-4 (CG) Y - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O2-13 (CANL) - O8-4 (CG) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O2-14 (CANH) - O8-16 (BAT) Y - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O2-13 (CANL) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher SUB BUS 1 MAIN LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O1-9 (CANP) - O1-10 (CANN) P - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 108 to 132 Ω O1-9 (CANP) - O8-4 (CG) P - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O1-10 (CANN) - O8-4 (CG) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O1-9 (CANP) - O8-16 (BAT) P - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O1-10 (CANN) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)
*a Component without harness connected
(Skid Control ECU (Brake Actuator Assembly))- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the A15 skid control ECU (brake actuator assembly) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Skid Control ECU (Brake Actuator Assembly))- - Standard Resistance
V BUS BRANCH LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A15-25 (CANH) - A15-14 (CANL) SB - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω A15-25 (CANH) - A15-1 (GND1) SB - W HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A15-14 (CANL) - A15-1 (GND1) B - W LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A15-25 (CANH) - A15-12 (+BS) SB - W HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A15-14 (CANL) - A15-12 (+BS) B - W LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher V3 BUS MAIN LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A15-15 (CA2H) - A15-3 (CA2L) LG - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 108 to 132 Ω A15-15 (CA2H) - A15-1 (GND1) LG - W HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A15-3 (CA2L) - A15-1 (GND1) B - W LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A15-15 (CA2H) - A15-12 (+BS) LG - W HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A15-3 (CA2L) - A15-12 (+BS) B - W LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- STEERING SENSOR
*a Component without harness connected
(Steering Sensor)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O28 steering sensor connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Steering Sensor)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O28-3 (CANH) - O28-2 (CANL) P - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O28-3 (CANH) - O28-1 (ESS) P - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O28-2 (CANL) - O28-1 (ESS) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O28-3 (CANH) - O28-8 (BAT) P - LG HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O28-2 (CANL) - O28-8 (BAT) B - LG LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- YAW RATE SENSOR
*a Component without harness connected
(Yaw Rate Sensor)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O81 yaw rate sensor connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Yaw Rate Sensor)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O81-3 (CANH) - O81-2 (CANL) G - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O81-3 (CANH) - O81-1 (GND) G - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O81-2 (CANL) - O81-1 (GND) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O81-3 (CANH) - O81-6 (+B) G - SB HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O81-2 (CANL) - O81-6 (+B) B - SB LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- POWER STEERING ECU ASSEMBLY
*a Component without harness connected
(Power Steering ECU Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the A18 power steering ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Power Steering ECU Assembly)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A18-3 (CA1H) - A18-2 (CA1L) G - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω A18-3 (CA1H) - A18-9 (PGND) G - B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A18-2 (CA1L) - A18-9 (PGND) B - B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A18-3 (CA1H) - A18-10 (PIG) G - B HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A18-2 (CA1L) - A18-10 (PIG) B - B LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- AIRBAG ECU ASSEMBLY
*a Component without harness connected
(Airbag ECU Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O50 airbag ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Airbag ECU Assembly)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O50-13 (CANH) - O50-22 (CANL) BE - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O50-13 (CANH) - O50-25 (E1) BE - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O50-22 (CANL) - O50-25 (E1) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O50-13 (CANH) - O8-16 (BAT) BE - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O50-22 (CANL) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

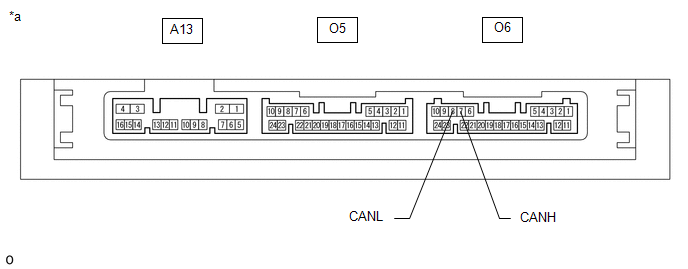

*a Component without harness connected
(Certification ECU (Smart Key ECU Assembly))- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O6 certification ECU (smart key ECU assembly) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Certification ECU (Smart Key ECU Assembly))- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O6-7 (CANH) - O6-8 (CANL) W - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O6-7 (CANH) - O6-11 (E) W - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O6-8 (CANL) - O6-11 (E) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O6-7 (CANH) - O6-10 (+B) W - BE HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O6-8 (CANL) - O6-10 (+B) B - BE LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- RADIO RECEIVER ASSEMBLY (w/ Navigation System)
*a Component without harness connected
(Radio Receiver Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O57 radio receiver assembly connector.
*a Front view of wire harness connector
(to Radio Receiver Assembly) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O57-1 (CANH) - O57-2 (CANL) R - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O57-1 (CANH) - O57-12 (GND1) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O57-2 (CANL) - O57-12 (GND1) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O57-1 (CANH) - O57-17 (+B1) R - V HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O57-2 (CANL) - O57-17 (+B1) B - V LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- RADIO RECEIVER ASSEMBLY (w/o Navigation System)
*a Component without harness connected
(Radio Receiver Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O68 and O70 radio receiver assembly connectors.

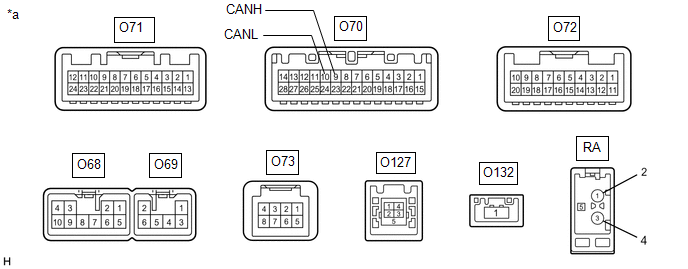

*a Front view of wire harness connector
(to Radio Receiver Assembly)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O70-9 (CANH) - O70-10 (CANL) R - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O70-9 (CANH) - O68-7 (GND1) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O70-10 (CANL) - O68-7 (GND1) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O70-9 (CANH) - O68-4 (+B1) R - V HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O70-10 (CANL) - O68-4 (+B1) B - V LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- AIR CONDITIONING AMPLIFIER ASSEMBLY
*a Component without harness connected
(Air Conditioning Amplifier Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O9 and O10 air conditioning amplifier assembly connectors.

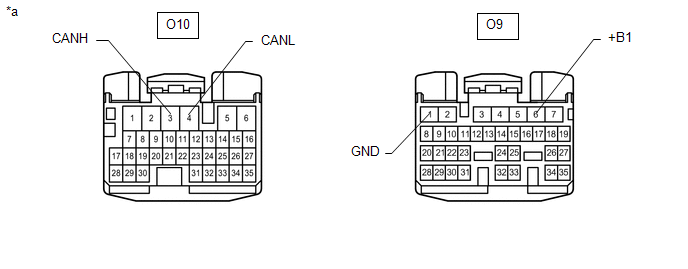

*a Front view of wire harness connector
(to Air Conditioning Amplifier Assembly)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O10-3 (CANH) - O10-4 (CANL) P - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O10-3 (CANH) - O9-1 (GND) P - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O10-4 (CANL) - O9-1 (GND) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O10-3 (CANH) - O9-6 (+B1) P - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O10-4 (CANL) - O9-6 (+B1) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- NETWORK GATEWAY ECU
*a Component without harness connected
(Network Gateway ECU)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O46 network gateway ECU connector.
*a Front view of wire harness connector
(to Network Gateway ECU)- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
V BUS BRANCH LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O46-16 (CA1H) - O46-15 (CA1L) BE - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O46-16 (CA1H) - O46-4 (GND) BE - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O46-15 (CA1L) - O46-4 (GND) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O46-16 (CA1H) - O46-2 (BATT) BE - LG HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O46-15 (CA1L) - O46-2 (BATT) B - LG LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher SUB BUS 2 MAIN LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O46-13 (CA2H) - O46-12 (CA2L) R - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 108 to 132 Ω O46-13 (CA2H) - O46-4 (GND) R - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O46-12 (CA2L) - O46-4 (GND) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O46-13 (CA2H) - O46-2 (BATT) R - LG HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O46-12 (CA2L) - O46-2 (BATT) B - LG LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- TELEMATICS TRANSCEIVER (for Lexus Enform Remote Compatible Type)
*a Component without harness connected
(Telematics Transceiver)*b Connector Color: Blue (to Telephone Antenna) *c Connector Color: Gray (to GPS Antenna) - - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O65 telematics transceiver connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Telematics Transceiver)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O65-15 (CANP) - O65-16 (CANN) SB - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O65-15 (CANP) - O65-4 (E) SB - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O65-16 (CANN) - O65-4 (E) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O65-15 (CANP) - O65-1 (+B) SB - P HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O65-16 (CANN) - O65-1 (+B) B - P LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- HEADLIGHT LEVELING ECU ASSEMBLY (for Single Beam Headlight)
*a Component without harness connected
(Headlight Leveling ECU Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the A61 headlight leveling ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Headlight Leveling ECU Assembly)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A61-6 (CANH) - A61-7 (CANL) LG - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω A61-6 (CANH) - A61-9 (E1) LG - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A61-7 (CANL) - A61-9 (E1) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A61-6 (CANH) - O8-16 (BAT) LG - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A61-7 (CANL) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH (for Triple Beam Headlight)
*a Component without harness connected
(Headlight Light Control ECU Sub-assembly LH)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the A3 headlight light control ECU sub-assembly LH connector.
- Measure the resistance according to the value(s) in the table below.

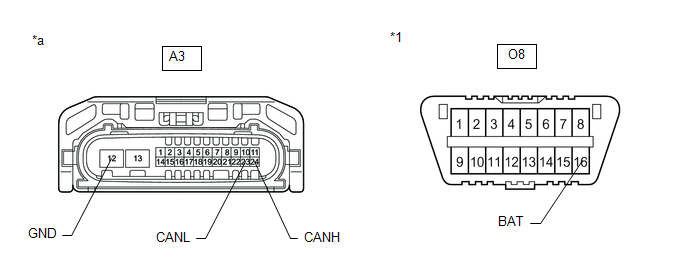

*1 DLC3 - - *a Front view of wire harness connector
(to Headlight Light Control ECU Sub-assembly LH)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A3-24 (CANH) - A3-23 (CANL) V - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω A3-24 (CANH) - A3-12 (GND) V - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A3-23 (CANL) - A3-12 (GND) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher A3-24 (CANH) - O8-16 (BAT) V - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher A3-23 (CANL) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- OUTER MIRROR CONTROL ECU ASSEMBLY (for Driver Side with Seat Position Memory System)
*a Component without harness connected
(Outer Mirror Control ECU Assembly (for Driver Side))- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the S12 outer mirror control ECU assembly (for driver side) connector.
*a Front view of wire harness connector
(to Outer Mirror Control ECU Assembly (for Driver Side))- - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition S12-9 (CANP) - S12-8 (CANN) W - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω S12-9 (CANP) - S12-7 (GND) W - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher S12-8 (CANN) - S12-7 (GND) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher S12-9 (CANP) - S12-6 (CPUB) W - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher S12-8 (CANN) - S12-6 (CPUB) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- OUTER MIRROR CONTROL ECU ASSEMBLY (for Front Passenger Side with Seat Position Memory System)
*a Component without harness connected
(Outer Mirror Control ECU Assembly (for Front Passenger Side))- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the R12 outer mirror control ECU assembly (for front passenger side) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Outer Mirror Control ECU Assembly (for Front Passenger Side))- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition R12-9 (CANP) - R12-8 (CANN) W - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω R12-9 (CANP) - R12-7 (GND) W - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher R12-8 (CANN) - R12-7 (GND) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher R12-9 (CANP) - R12-6 (CPUB) W - LG HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher R12-8 (CANN) - R12-6 (CPUB) B - LG LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- POSITION CONTROL ECU AND SWITCH ASSEMBLY LH (w/ Seat Position Memory System)
*a Component without harness connected
(Position Control ECU and Switch Assembly LH)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the b4 and b5 position control ECU and switch assembly LH connectors.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Position Control ECU and Switch Assembly LH)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition b5-8 (CANP) - b5-7 (CANN) L - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω b5-8 (CANP) - b4-2 (GND) L - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher b5-7 (CANN) - b4-2 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher b5-8 (CANP) - b4-7 (+B) L - W HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher b5-7 (CANN) - b4-7 (+B) W - W LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- POSITION CONTROL ECU AND SWITCH ASSEMBLY RH (w/ Seat Position Memory System)
*a Component without harness connected
(Position Control ECU and Switch Assembly RH)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the a4 and a5 position control ECU and switch assembly RH connectors.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Position Control ECU and Switch Assembly RH)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition a5-8 (CANP) - a5-7 (CANN) L - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω a5-8 (CANP) - a4-2 (GND) L - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher a5-7 (CANN) - a4-2 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher a5-8 (CANP) - a4-7 (+B) L - W HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher a5-7 (CANN) - a4-7 (+B) W - W LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- MULTIPLEX TILT AND TELESCOPIC ECU
*a Component without harness connected
(Multiplex Tilt and Telescopic ECU)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O18 multiplex tilt and telescopic ECU connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Multiplex Tilt and Telescopic ECU)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O18-3 (CANP) - O18-11 (CANN) G - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O18-3 (CANP) - O18-1 (GND) G - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O18-11 (CANN) - O18-1 (GND) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O18-3 (CANP) - O18-2 (+B) G - SB HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O18-11 (CANN) - O18-2 (+B) B - SB LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System)
*a Component without harness connected
(Blind Spot Monitor Sensor LH)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the U48 blind spot monitor sensor LH connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Blind Spot Monitor Sensor LH)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition U48-2 (CA1P) - U48-7 (CA1N) R - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω U48-2 (CA1P) - U48-10 (BLGD) R - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher U48-7 (CA1N) - U48-10 (BLGD) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher U48-2 (CA1P) - O8-16 (BAT) R - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher U48-7 (CA1N) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- DRIVING SUPPORT ECU ASSEMBLY (w/ Pre-collision System)
*a Component without harness connected
(Driving Support ECU Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the Q1 driving support ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.

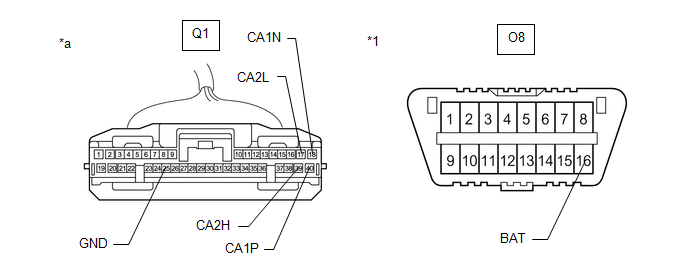

*1 DLC3 - - *a Front view of wire harness connector
(to Driving Support ECU Assembly)- - Standard Resistance
SUB BUS 2 BRANCH LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition Q1-39 (CA2H) - Q1-17 (CA2L) G - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω Q1-39 (CA2H) - Q1-25 (GND) G - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher Q1-17 (CA2L) - Q1-25 (GND) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher Q1-39 (CA2H) - O8-16 (BAT) G - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Q1-17 (CA2L) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher SUB BUS 13 MAIN LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition Q1-40 (CA1P) - Q1-18 (CA1N) B - G HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 108 to 132 Ω Q1-40 (CA1P) - Q1-25 (GND) B - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher Q1-18 (CA1N) - Q1-25 (GND) G - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher Q1-40 (CA1P) - O8-16 (BAT) B - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Q1-18 (CA1N) - O8-16 (BAT) G - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)
*a Component without harness connected
(Millimeter Wave Radar Sensor Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the B7 millimeter wave radar sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition B7-3 (CA1P) - B7-2 (CA1N) B - G HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 108 to 132 Ω B7-3 (CA1P) - B7-1 (SGND) B - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher B7-2 (CA1N) - B7-1 (SGND) G - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher B7-3 (CA1P) - O8-16 (BAT) B - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher B7-2 (CA1N) - O8-16 (BAT) G - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- OPTION CONNECTOR (BUS BUFFER ECU)
- Disconnect the cable from the negative (-) battery terminal.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O97-4 (CAN+) - O97-8 (CAN-) R - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O97-4 (CAN+) - O97-7 (RGN1) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O97-8 (CAN-) - O97-7 (RGN1) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O97-4 (CAN+) - O97-1 (R+B) R - LG HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O97-8 (CAN-) - O97-1 (R+B) B - LG LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher *a Front view of wire harness connector
(to Option Connector (Bus Buffer ECU))
- CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System)
*a Component without harness connected
(Clearance Warning ECU Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O43 clearance warning ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.

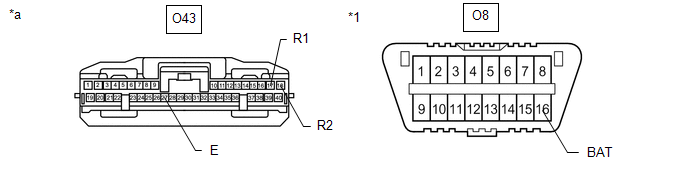

*1 DLC3 - - *a Front view of wire harness connector
(to Clearance Warning ECU Assembly)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O43-17 (R1) - O43-18 (R2) SB - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O43-17 (R1) - O43-27 (E) SB - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O43-18 (R2) - O43-27 (E) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O43-17 (R1) - O8-16 (BAT) SB - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O43-18 (R2) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- LANE DEPARTURE WARNING CAMERA (w/ Lane Departure Alert System)
*a Component without harness connected
(Lane Departure Warning Camera)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the W9 lane departure warning camera connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Lane Departure Warning Camera)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition W9-6 (CA1P) - W9-12 (CA1N) R - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω W9-6 (CA1P) - W9-11 (GND) R - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher W9-12 (CA1N) - W9-11 (GND) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher W9-6 (CA1P) - O8-16 (BAT) R - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher W9-12 (CA1N) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- ROLL RATE AND VERTICAL ACCELERATION SENSOR
*a Component without harness connected
(Roll Rate and Vertical Acceleration Sensor)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the E1 roll rate and vertical acceleration sensor connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Roll Rate and Vertical Acceleration Sensor)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition E1-3 (YAW1) - E1-2 (YAW2) G - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω E1-3 (YAW1) - E1-1 (GNDA) G - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E1-2 (YAW2) - E1-1 (GNDA) B - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher E1-3 (YAW1) - E1-6 (+B) G - SB HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E1-2 (YAW2) - E1-6 (+B) B - SB LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System without Parallel Parking Assist Function)
*a Component without harness connected
(Rear Television Camera Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the U40 rear television camera assembly connector.
- Measure the resistance according to the value(s) in the table below.

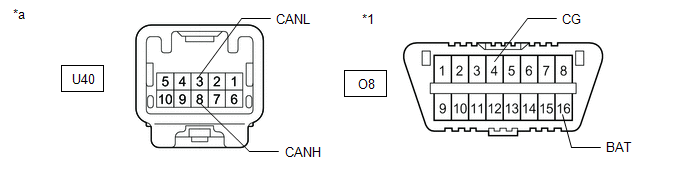

*1 DLC3 - - *a Front view of wire harness connector
(to Rear Television Camera Assembly)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition U40-8 (CANH) - U40-3 (CANL) L - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω U40-8 (CANH) - O8-4 (CG) L - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher U40-3 (CANL) - O8-4 (CG) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher U40-8 (CANH) - O8-16 (BAT) L - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher U40-3 (CANL) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- STEREO COMPONENT EQUALIZER ASSEMBLY (w/ ASC System)
*a Component without harness connected
(Stereo Component Equalizer Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O31 stereo component equalizer assembly connector.
- Measure the resistance according to the value(s) in the table below.

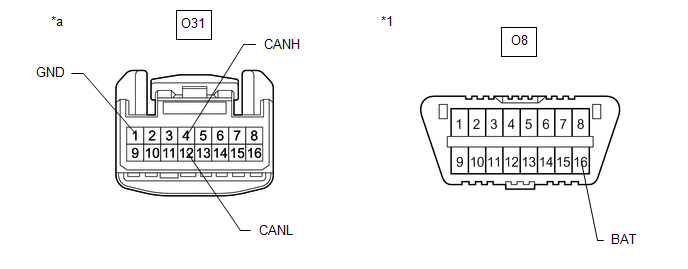

*1 DLC3 - - *a Front view of wire harness connector
(to Stereo Component Equalizer Assembly)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition O31-4 (CANH) - O31-12 (CANL) G - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω O31-4 (CANH) - O31-1 (GND) G - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O31-12 (CANL) - O31-1 (GND) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher O31-4 (CANH) - O8-16 (BAT) G - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher O31-12 (CANL) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- SPOILER CONTROL ECU ASSEMBLY
*a Component without harness connected
(Spoiler Control ECU Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the U38 spoiler control ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Spoiler Control ECU Assembly)- - Standard Resistance
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition U38-10 (CANP) - U38-11 (CANN) GR - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω U38-10 (CANP) - U38-1 (GND) GR - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher U38-11 (CANN) - U38-1 (GND) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher U38-10 (CANP) - O8-16 (BAT) GR - L HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher U38-11 (CANN) - O8-16 (BAT) B - L LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
- TORQUE VECTORING DIFFERENTIAL ECU ASSEMBLY (w/ Torque Vectoring Differential System)
*a Component without harness connected
(Torque Vectoring Differential ECU Assembly)- - - Disconnect the cable from the negative (-) battery terminal.
- Disconnect the T27 and T43 torque vectoring differential ECU assembly connectors.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Torque Vectoring Differential ECU Assembly)- - Standard Resistance

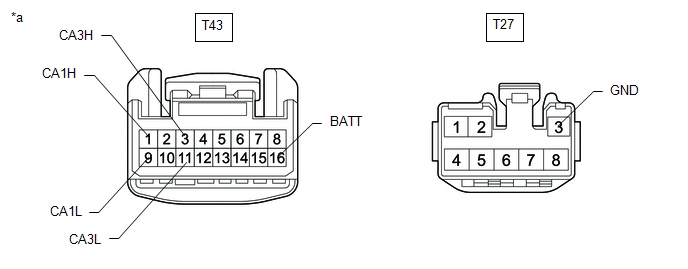

V BUS BRANCH LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition T43-1 (CA1H) - T43-9 (CA1L) P - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω T43-1 (CA1H) - T27-3 (GND) P - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher T43-9 (CA1L) - T27-3 (GND) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher T43-1 (CA1H) - T43-16 (BATT) P - LG HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher T43-9 (CA1L) - T43-16 (BATT) B - LG LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher V3 BUS BRANCH LINESTerminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition T43-3 (CA3H) - T43-11 (CA3L) V - B HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) battery terminal 54 to 69 Ω T43-3 (CA3H) - T27-3 (GND) V - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher T43-11 (CA3L) - T27-3 (GND) B - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) battery terminal 200 Ω or higher T43-3 (CA3H) - T43-16 (BATT) V - LG HIGH-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher T43-11 (CA3L) - T43-16 (BATT) B - LG LOW-level CAN bus line - Battery positive (+) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
