Radio Receiver Assembly Communication Stop Mode [11/2017 - 03/2019]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the O147 radio receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Radio Receiver Assembly)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O147-13 (CANH) - O147-14 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (RADIO RECEIVER ASSEMBLY)

Result:

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

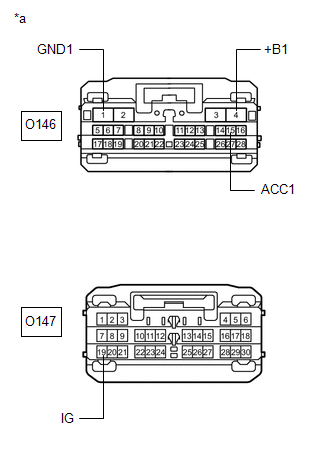

   *a	Front view of wire harness connector (to Radio Receiver Assembly)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O146-1 (GND1) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

2. Reconnect the cable to the negative (-) battery terminal.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   O147-19 (IG) - Body ground	Engine switch on (IG)	11 to 14 V
   O146-15 (ACC1) - Body ground	Engine switch on (ACC)	11 to 14 V
   O146-4 (+B1) - Body ground	Always	11 to 14 V

   Result

   Result
   OK
   NG

Result:

OK

REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [11/2017 - 03/2019]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
