DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [09/2014 - 08/2016]: Wiring Diagram

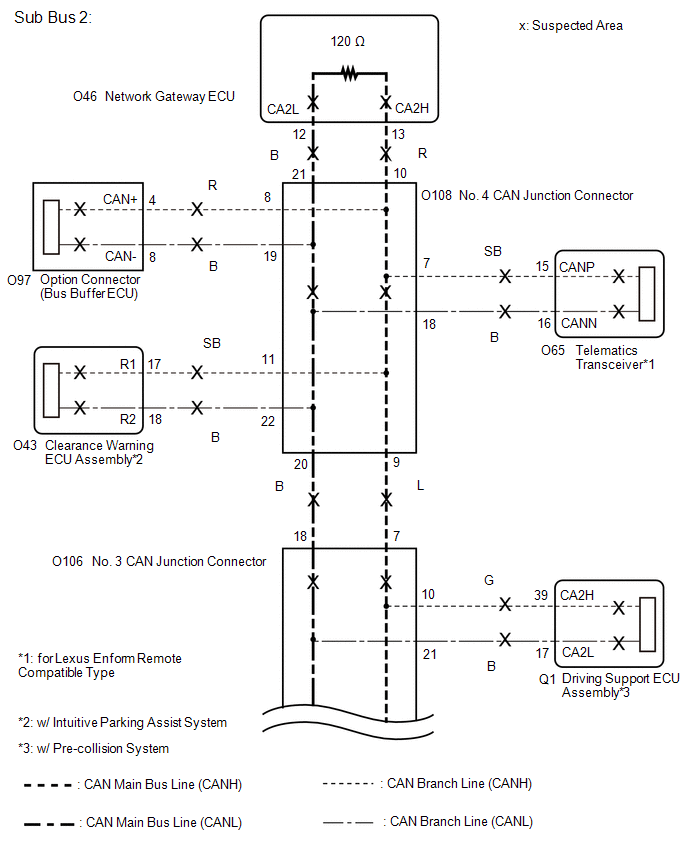

GTY500982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY522617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
