DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [08/2016 - 11/2017]: Wiring Diagram

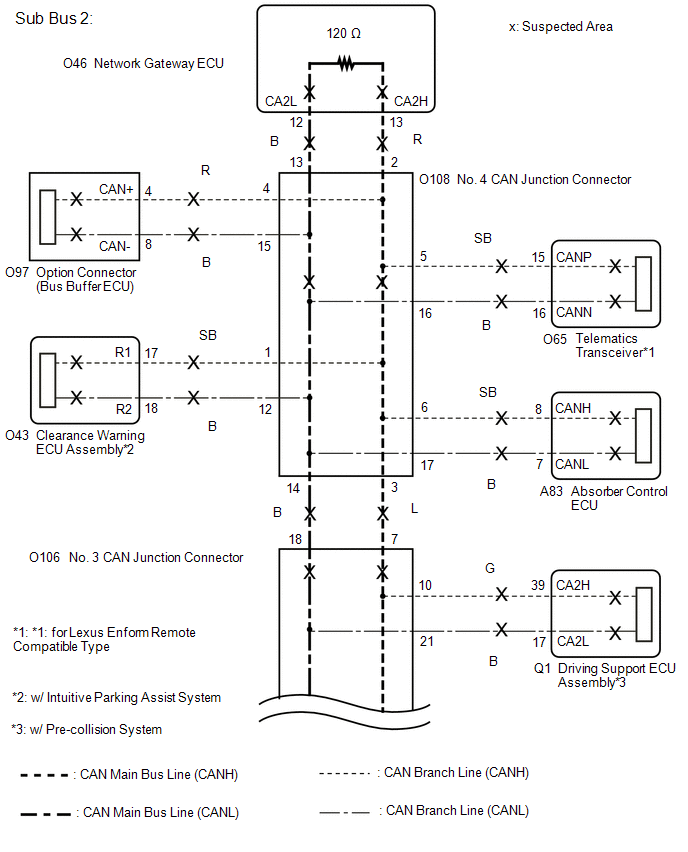

GTY613097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

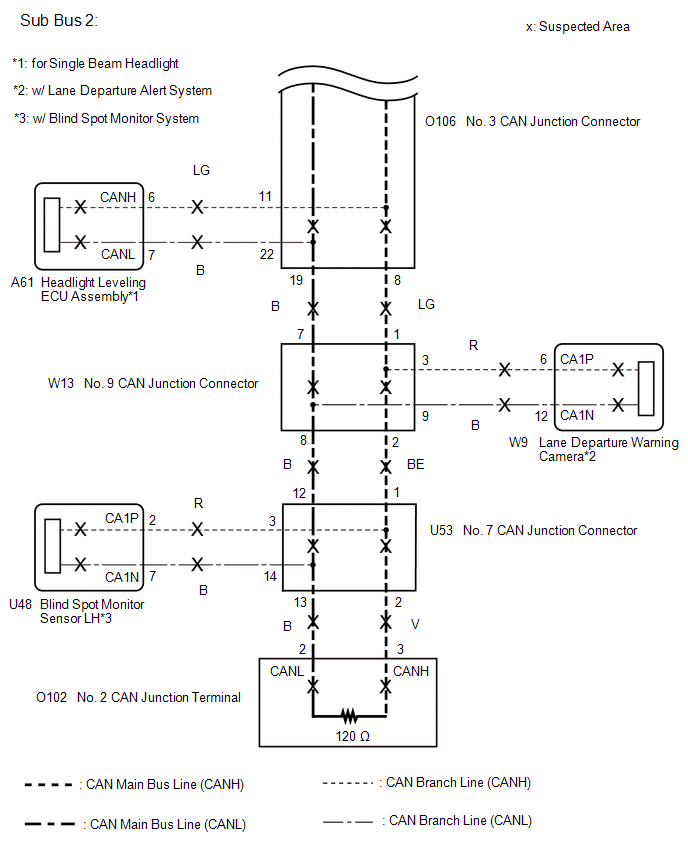

GTY522617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
