DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [08/2016 - 11/2017]: Procedure

  1. CHECK SUB BUS 2
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

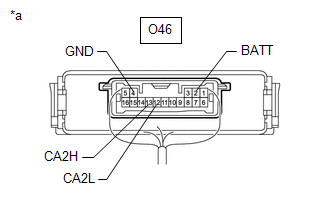

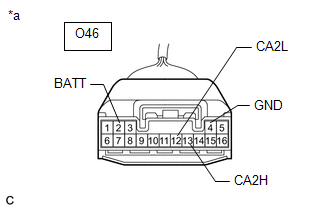

      GTY499330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      O46-13 (CA2H) - O46-12 (CA2L) Cable disconnected from negative (-) battery terminal 54 to 69 Ω Below 54 Ω: Short circuit between bus lines
      70 Ω or higher: Open circuit in main bus lines
      O46-13 (CA2H) - O46-4 (GND) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground
      O46-12 (CA2L) - O46-4 (GND) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O46-13 (CA2H) - O46-2 (BATT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short
      O46-12 (CA2L) - O46-2 (BATT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short

      Result

      Result Proceed to
      OK A
      Open circuit in CAN main bus lines B
      Short circuit between bus lines C
      • Short to ground
      • +B short
      D

    Result:

    See step  3

    Result:

    See step  9

    Result:

    See step  16

    Result:

    See step  2

  2. CHECK FOR DTC OUTPUT
    1. Reconnect the cable to the negative (-) battery terminal.
    2. Connect the Techstream to the DLC3.
    3. Turn the engine switch on (IG).
    4. Turn the Techstream on.
    5. Clear the DTCs.

      Body Electrical > Gateway > Clear DTCs

    6. Turn the engine switch off.
    7. Turn the engine switch on (IG).
    8. Check for DTCs.

      Body Electrical > Gateway > Trouble Codes

      Result

      Result Proceed to
      DTC U1002 is not output from the network gateway ECU (Techstream display: Gateway) A
      DTC U1002 is output from the network gateway ECU (Techstream display: Gateway) B

    Result:

    SYMPTOM SIMULATION. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2016 - 11/2017]

    Result:

    REPLACE NETWORK GATEWAY ECU. Refer to  REMOVAL [09/2014 - 11/2017]

  3. CHECK FOR OPEN IN SUB BUS 2 MAIN LINES (NETWORK GATEWAY ECU)
    1. Disconnect the O46 network gateway ECU connector.

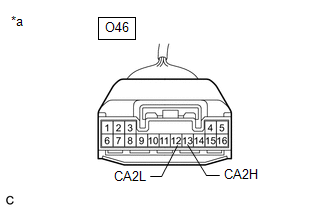

      GTY506678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Network Gateway ECU)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O46-13 (CA2H) - O46-12 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NETWORK GATEWAY ECU. Refer to  REMOVAL [09/2014 - 11/2017]

    Result:

    NG

    See step  4

  4. CHECK FOR OPEN IN SUB BUS 2 MAIN LINES (NO. 2 CAN JUNCTION TERMINAL)
    1. Reconnect the O46 network gateway ECU connector.
    2. Disconnect the O102 No. 2 CAN junction terminal connector.
      GTY517229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 CAN Junction Terminal)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O102-3 (CANH) - O102-2 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    See step  5

  5. CHECK FOR OPEN IN SUB BUS 2 MAIN LINES (NO. 4 CAN JUNCTION CONNECTOR)
    1. Reconnect the O102 No. 2 CAN junction terminal connector.
    2. Disconnect the O108 No. 4 CAN junction connector.

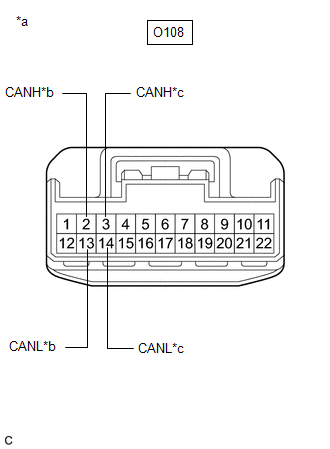

      GTY651737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 4 CAN Junction Connector)
      *b to Network Gateway ECU
      *c to No. 3 CAN Junction Connector
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      O108-2 (CANH) - O108-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Network gateway ECU
      O108-3 (CANH) - O108-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 3 CAN junction connector

      Result

      Result Proceed to
      OK A
      NG (Network gateway ECU main lines) B
      NG (No. 3 CAN junction connector main lines) C

    Result:

    REPLACE NO. 4 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NETWORK GATEWAY ECU - NO. 4 CAN JUNCTION CONNECTOR)

    Result:

    See step  6

  6. CHECK FOR OPEN IN SUB BUS 2 MAIN LINES (NO. 3 CAN JUNCTION CONNECTOR)
    1. Reconnect the O108 No. 4 CAN junction connector.
    2. Disconnect the O106 No. 3 CAN junction connector.

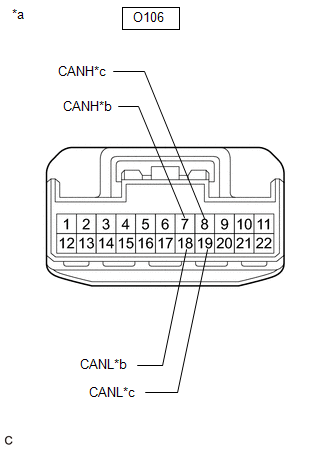

      GTY500667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 3 CAN Junction Connector)
      *b to No. 4 CAN Junction Connector
      *c to No. 9 CAN Junction Connector
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      O106-7 (CANH) - O106-18 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 4 CAN junction connector
      O106-8 (CANH) - O106-19 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 9 CAN junction connector

      Result

      Result Proceed to
      OK A
      NG (No. 4 CAN junction connector main lines) B
      NG (No. 9 CAN junction connector main lines) C

    Result:

    REPLACE NO. 3 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - NO. 4 CAN JUNCTION CONNECTOR)

    Result:

    See step  7

  7. CHECK FOR OPEN IN SUB BUS 2 MAIN LINES (NO. 9 CAN JUNCTION CONNECTOR)
    1. Reconnect the O106 No. 3 CAN junction connector.
    2. Disconnect the W13 No. 9 CAN junction connector.

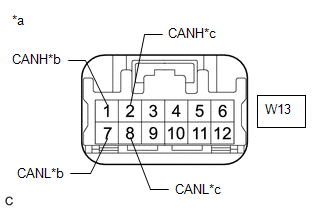

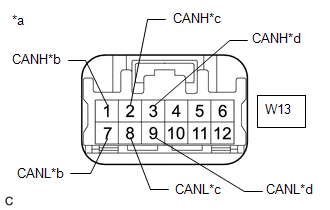

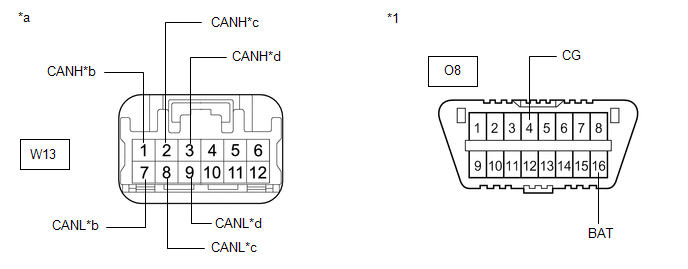

      GTY502012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 CAN Junction Connector)
      *b to No. 3 CAN Junction Connector
      *c to No. 7 CAN Junction Connector
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      W13-1 (CANH) - W13-7 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 3 CAN junction connector
      W13-2 (CANH) - W13-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 7 CAN junction connector

      Result

      Result Proceed to
      OK A
      NG (No. 3 CAN junction connector main lines) B
      NG (No. 7 CAN junction connector main lines) C

    Result:

    REPLACE NO. 9 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - NO. 9 CAN JUNCTION CONNECTOR)

    Result:

    See step  8

  8. CHECK FOR OPEN IN SUB BUS 2 MAIN LINES (NO. 7 CAN JUNCTION CONNECTOR)
    1. Reconnect the W13 No. 9 CAN junction connector.
    2. Disconnect the U53 No. 7 CAN junction connector.

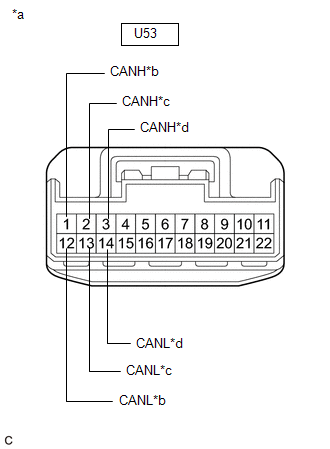

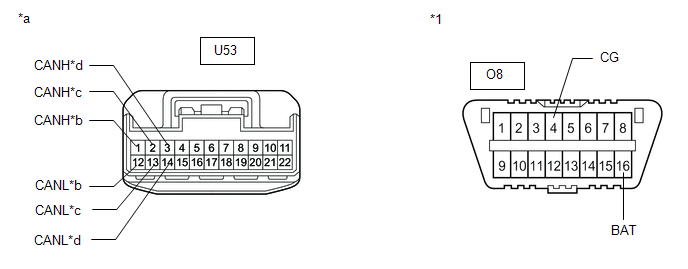

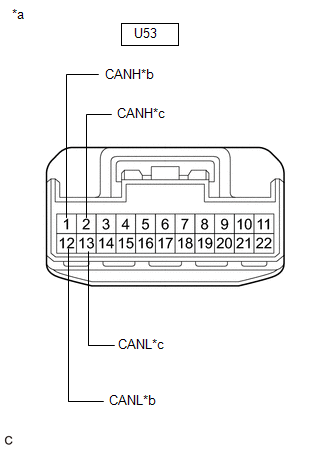

      GTY500666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 CAN Junction Connector)
      *b to No. 9 CAN Junction Connector
      *c to No. 2 CAN Junction Terminal
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      U53-1 (CANH) - U53-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 9 CAN junction connector
      U53-2 (CANH) - U53-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 2 CAN junction terminal

      Result

      Result Proceed to
      OK A
      NG (No. 9 CAN junction connector main lines) B
      NG (No. 2 CAN junction terminal main lines) C

    Result:

    REPLACE NO. 7 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 CAN JUNCTION CONNECTOR - NO. 9 CAN JUNCTION CONNECTOR)

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

  9. CHECK FOR SHORT IN SUB BUS 2 LINES (NETWORK GATEWAY ECU)
    1. Disconnect the O46 network gateway ECU connector.

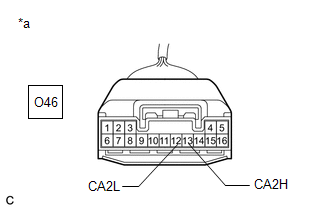

      GTY506676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Network Gateway ECU)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O46-13 (CA2H) - O46-12 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NETWORK GATEWAY ECU. Refer to  REMOVAL [09/2014 - 11/2017]

    Result:

    NG

    See step  10

  10. CHECK FOR SHORT IN SUB BUS 2 LINES (NO. 2 CAN JUNCTION TERMINAL)
    1. Reconnect the O46 network gateway ECU connector.
    2. Disconnect the O102 No. 2 CAN junction terminal connector.

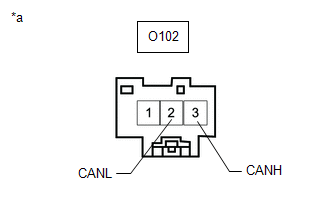

      GTY496274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 CAN Junction Terminal)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O102-3 (CANH) - O102-2 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    See step  11

  11. CHECK FOR SHORT IN SUB BUS 2 LINES (NO. 4 CAN JUNCTION CONNECTOR)
    1. Reconnect the O102 No. 2 CAN junction terminal connector.
    2. Disconnect the O108 No. 4 CAN junction connector.

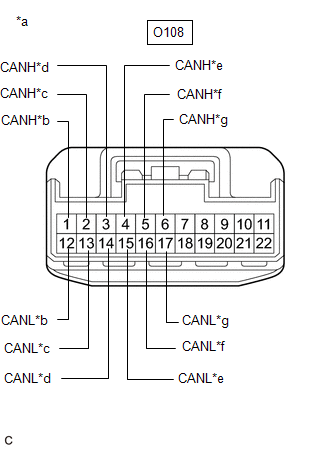

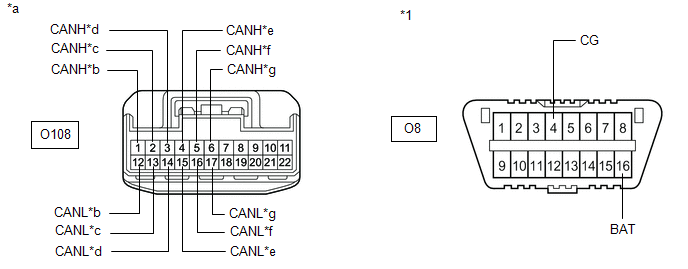

      GTY681154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 4 CAN Junction Connector)
      *b to Clearance Warning ECU Assembly
      (w/ Intuitive Parking Assist System)
      *c to Network Gateway ECU
      *d to No. 3 CAN Junction Connector
      *e to Option Connector (Bus Buffer ECU)
      *f to Telematics Transceiver
      (for Lexus Enform Remote Compatible Type)
      *g to Absorber Control ECU
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      O108-1 (CANH) - O108-12 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Clearance warning ECU assembly*1
      O108-2 (CANH) - O108-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Network gateway ECU
      O108-3 (CANH) - O108-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 3 CAN junction connector
      O108-4 (CANH) - O108-15 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher Option connector (bus buffer ECU)
      O108-5 (CANH) - O108-16 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Telematics transceiver*2
      O108-6 (CANH) - O108-17 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Absorber control ECU
      1. *1: w/ Intuitive Parking Assist System
      2. *2: for Lexus Enform Remote Compatible Type

      Result

      Result Proceed to
      OK A
      NG (Network gateway ECU main lines) B
      NG (ECU or sensor branch lines) C
      NG (No. 3 CAN junction connector main lines) D

    Result:

    REPLACE NO. 4 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NETWORK GATEWAY ECU - NO. 4 CAN JUNCTION CONNECTOR)

    Result:

    See step  15

    Result:

    See step  12

  12. CHECK FOR SHORT IN SUB BUS 2 LINES (NO. 3 CAN JUNCTION CONNECTOR)
    1. Reconnect the O108 No. 4 CAN junction connector.
    2. Disconnect the O106 No. 3 CAN junction connector.

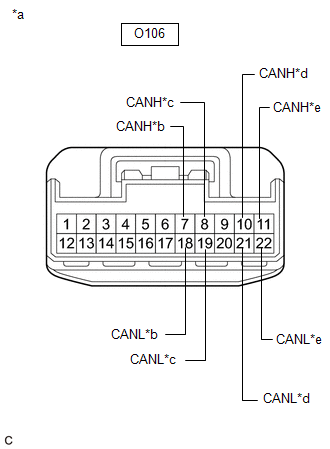

      GTY500650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 3 CAN Junction Connector)
      *b to No. 4 CAN Junction Connector
      *c to No. 9 CAN Junction Connector
      *d to Driving Support ECU Assembly
      (w/ Pre-collision System)
      *e to Headlight Leveling ECU Assembly
      (for Single Beam Headlight)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      O106-7 (CANH) - O106-18 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 4 CAN junction connector
      O106-8 (CANH) - O106-19 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 9 CAN junction connector
      O106-10 (CANH) - O106-21 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Driving support ECU assembly*1
      O106-11 (CANH) - O106-22 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Headlight leveling ECU assembly*2
      • *1: w/ Pre-collision System
      • *2: for Single Beam Headlight

      Result

      Result Proceed to
      OK A
      NG (No. 4 CAN junction connector main lines) B
      NG (ECU or sensor branch lines) C
      NG (No. 9 CAN junction connector main lines) D

    Result:

    REPLACE NO. 3 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - NO. 4 CAN JUNCTION CONNECTOR)

    Result:

    See step  15

    Result:

    See step  13

  13. CHECK FOR SHORT IN SUB BUS 2 LINES (NO. 9 CAN JUNCTION CONNECTOR)
    1. Reconnect the O106 No. 3 CAN junction connector.
    2. Disconnect the W13 No. 9 CAN junction connector.
      GTY518494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 CAN Junction Connector)
      *b to No. 3 CAN Junction Connector
      *c to No. 7 CAN Junction Connector
      *d to Lane Departure Warning Camera
      (w/ Lane Departure Alert System)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      W13-1 (CANH) - W13-7 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 3 CAN junction connector
      W13-2 (CANH) - W13-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 7 CAN junction connector
      W13-3 (CANH) - W13-9 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Lane departure warning camera*
      1. *: w/ Lane Departure Alert System

      Result

      Result Proceed to
      OK A
      NG (No. 3 CAN junction connector main lines) B
      NG (ECU or sensor branch lines) C
      NG (No. 7 CAN junction connector main lines) D

    Result:

    REPLACE NO. 9 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - NO. 9 CAN JUNCTION CONNECTOR)

    Result:

    See step  15

    Result:

    See step  14

  14. CHECK FOR SHORT IN SUB BUS 2 LINES (NO. 7 CAN JUNCTION CONNECTOR)
    1. Reconnect the W13 No. 9 CAN junction connector.
    2. Disconnect the U53 No. 7 CAN junction connector.
      GTY518199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 CAN Junction Connector)
      *b to No. 9 CAN Junction Connector
      *c to No. 2 CAN Junction Terminal
      *d to Blind Spot Monitor Sensor LH
      (w/ Blind Spot Monitor System)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      U53-1 (CANH) - U53-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 9 CAN junction connector
      U53-2 (CANH) - U53-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 2 CAN junction terminal
      U53-3 (CANH) - U53-14 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher Blind spot monitor sensor LH*
      1. *: w/ Blind Spot Monitor System

      Result

      Result Proceed to
      OK A
      NG (No. 9 CAN junction connector main lines) B
      NG (ECU or sensor branch lines) C
      NG (No. 2 CAN junction terminal main lines) D

    Result:

    REPLACE NO. 7 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 CAN JUNCTION CONNECTOR - NO. 9 CAN JUNCTION CONNECTOR)

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

    Result:

    See step  15

  15. CHECK FOR SHORT IN SUB BUS 2 LINES (ECU, SENSOR)
    1. Reconnect all wire harness connectors.
    2. Disconnect the connector that includes terminals CANH and CANL from the ECU or sensor to which the short circuited branch line is connected.

      Refer to TERMINALS OF ECU [08/2016 - 11/2017]

    3. Measure the resistance according to the value(s) in the table below.

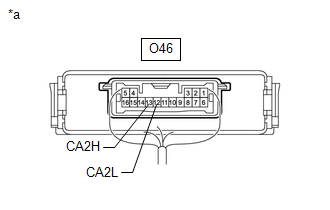

      GTY517900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O46-13 (CA2H) - O46-12 (CA2L) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

      HINT:

      If the resistance becomes normal (between 54 and 69 Ω) when the connector is disconnected from the ECU or sensor, there may be a short in the ECU or sensor.

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CORRESPONDING ECU OR SENSOR

    Result:

    NG

    REPAIR OR REPLACE CORRESPONDING ECU OR SENSOR BRANCH LINES OR CONNECTOR

  16. CHECK FOR SHORT IN SUB BUS 2 LINE (NO. 4 CAN JUNCTION CONNECTOR)
    1. Disconnect the O108 No. 4 CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY665611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 4 CAN Junction Connector)
      *b to Telematics Transceiver
      (for Lexus Enform Remote Compatible Type)
      *c to Option Connector (Bus Buffer ECU) *d to No. 3 CAN Junction Connector
      *e to Network Gateway ECU *f to Clearance Warning ECU Assembly
      (w/ Intuitive Parking Assist System)
      *g to Absorber Control ECU - -

      Standard Resistance

      Tester Connection Condition Specified Condition Result Connected to
      O108-1 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground Clearance warning ECU assembly*1
      O108-12 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O108-2 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground Network gateway ECU
      O108-13 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O108-3 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground No. 3 CAN junction connector
      O108-14 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O108-4 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground Option connector (bus buffer ECU)
      O108-15 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O108-5 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground Telematics transceiver*2
      O108-16 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O108-6 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground Absorber control ECU
      O108-17 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O108-1 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short Clearance warning ECU assembly*1
      O108-12 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      O108-2 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short Network gateway ECU
      O108-13 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      O108-3 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short No. 3 CAN junction connector
      O108-14 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      O108-4 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short Option connector (bus buffer ECU)
      O108-15 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      O108-5 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short Telematics transceiver*2
      O108-16 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      O108-6 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short Absorber control ECU
      O108-17 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      1. *1: w/ Intuitive Parking Assist System
      2. *2: for Lexus Enform Remote Compatible Type

      HINT:

      • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
      • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

      Result

      Result Proceed to
      OK A
      NG (Network gateway ECU main line) B
      NG (ECU or sensor branch line) C
      NG (No. 3 CAN junction connector main line) D

    Result:

    REPLACE NO. 4 CAN JUNCTION CONNECTOR

    Result:

    See step  21

    Result:

    See step  18

    Result:

    See step  17

  17. CHECK FOR SHORT IN SUB BUS 2 LINE (NETWORK GATEWAY ECU)
    1. Reconnect the O108 No. 4 CAN junction connector.
    2. Disconnect the O46 network gateway ECU connector.
      GTY506677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Network Gateway ECU)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      O46-13 (CA2H) - O46-4 (GND) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground
      O46-12 (CA2L) - O46-4 (GND) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O46-13 (CA2H) - O46-2 (BATT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short
      O46-12 (CA2L) - O46-2 (BATT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short

      HINT:

      • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
      • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NETWORK GATEWAY ECU. Refer to  REMOVAL [09/2014 - 11/2017]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NETWORK GATEWAY ECU - NO. 4 CAN JUNCTION CONNECTOR)

  18. CHECK FOR SHORT IN SUB BUS 2 LINE (NO. 3 CAN JUNCTION CONNECTOR)
    1. Reconnect the O108 No. 4 CAN junction connector.
    2. Disconnect the O106 No. 3 CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

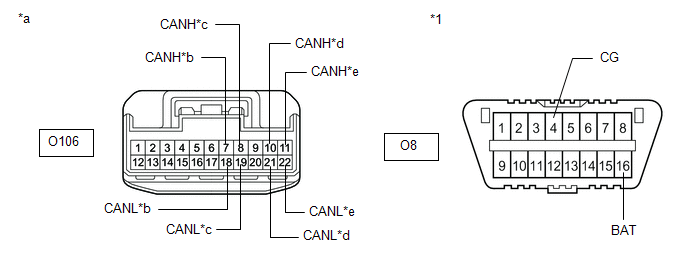

      GTY510198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 3 CAN Junction Connector)
      *b to No. 4 CAN Junction Connector
      *c to No. 9 CAN Junction Connector *d to Driving Support ECU Assembly
      (w/ Pre-collision System)
      *e to Headlight Leveling ECU Assembly
      (for Single Beam Headlight)
      - -

      Standard Resistance

      Tester Connection Condition Specified Condition Result Connected to
      O106-7 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground No. 4 CAN junction connector
      O106-18 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O106-8 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground No. 9 CAN junction connector
      O106-19 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O106-10 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground Driving support ECU assembly*1
      O106-21 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O106-11 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground Headlight leveling ECU assembly*2
      O106-22 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O106-7 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short No. 4 CAN junction connector
      O106-18 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      O106-8 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short No. 9 CAN junction connector
      O106-19 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      O106-10 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short Driving support ECU assembly*1
      O106-21 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      O106-11 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short Headlight leveling ECU assembly*2
      O106-22 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      • *1: w/ Pre-collision System
      • *2: for Single Beam Headlight

      HINT:

      • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
      • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

      Result

      Result Proceed to
      OK A
      NG (ECU or sensor branch line) B
      NG (No. 4 CAN junction connector main line) C
      NG (No. 9 CAN junction connector main line) D

    Result:

    REPLACE NO. 3 CAN JUNCTION CONNECTOR

    Result:

    See step  21

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - NO. 4 CAN JUNCTION CONNECTOR)

    Result:

    See step  19

  19. CHECK FOR SHORT IN SUB BUS 2 LINE (NO. 9 CAN JUNCTION CONNECTOR)
    1. Reconnect the O106 No. 3 CAN junction connector.
    2. Disconnect the W13 No. 9 CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY503505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 CAN Junction Connector)
      *b to No. 3 CAN Junction Connector
      *c to No. 7 CAN Junction Connector *d to Lane Departure Warning Camera
      (w/ Lane Departure Alert System)

      Standard Resistance

      Tester Connection Condition Specified Condition Result Connected to
      W13-1 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground No. 3 CAN junction connector
      W13-7 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      W13-2 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground No. 7 CAN junction connector
      W13-8 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      W13-3 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground Lane departure warning camera*
      W13-9 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      W13-1 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short No. 3 CAN junction connector
      W13-7 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      W13-2 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short No. 7 CAN junction connector
      W13-8 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      W13-3 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short Lane departure warning camera*
      W13-9 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      1. *: w/ Lane Departure Alert System

      HINT:

      • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
      • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

      Result

      Result Proceed to
      OK A
      NG (ECU or sensor branch line) B
      NG (No. 3 CAN junction connector main line) C
      NG (No. 7 CAN junction connector main line) D

    Result:

    REPLACE NO. 9 CAN JUNCTION CONNECTOR

    Result:

    See step  21

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - NO. 9 CAN JUNCTION CONNECTOR)

    Result:

    See step  20

  20. CHECK FOR SHORT IN SUB BUS 2 LINE (NO. 7 CAN JUNCTION CONNECTOR)
    1. Reconnect the W13 No. 9 CAN junction connector.
    2. Disconnect the U53 No. 7 CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY510188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 CAN Junction Connector)
      *b to No. 9 CAN Junction Connector
      *c to No. 2 CAN Junction Terminal *d to Blind Spot Monitor Sensor LH
      (w/ Blind Spot Monitor System)

      Standard Resistance

      Tester Connection Condition Specified Condition Result Connected to
      U53-1 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground No. 9 CAN junction connector
      U53-12 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      U53-2 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground No. 2 CAN junction terminal
      U53-13 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      U53-3 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground Blind spot monitor sensor LH*
      U53-14 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      U53-1 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short No. 9 CAN junction connector
      U53-12 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      U53-2 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short No. 2 CAN junction terminal
      U53-13 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      U53-3 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short Blind spot monitor sensor LH*
      U53-14 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short
      1. *: w/ Blind Spot Monitor System

      HINT:

      • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
      • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

      Result

      Result Proceed to
      OK A
      NG (No. 9 CAN junction connector main line) B
      NG (ECU or sensor branch line) C
      NG (No. 2 CAN junction terminal main line) D

    Result:

    REPLACE NO. 7 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 CAN JUNCTION CONNECTOR - NO. 9 CAN JUNCTION CONNECTOR)

    Result:

    See step  22

    Result:

    See step  21

  21. CHECK FOR SHORT IN SUB BUS 2 LINE (ECU, SENSOR)
    1. Reconnect all wire harness connectors.
    2. Disconnect the connector that includes terminals CANH and CANL from the ECU or sensor to which the bus line shorted to +B or shorted to GND is connected.

      Refer to TERMINALS OF ECU [08/2016 - 11/2017]

    3. Measure the resistance according to the value(s) in the table below.
      GTY499328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      O46-13 (CA2H) - O46-4 (GND) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground
      O46-12 (CA2L) - O46-4 (GND) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O46-13 (CA2H) - O46-2 (BATT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short
      O46-12 (CA2L) - O46-2 (BATT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short

      HINT:

      • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
      • If the resistance becomes normal when the connector is disconnected from the ECU or sensor, there may be a short in the ECU or sensor.
      • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CORRESPONDING ECU OR SENSOR

    Result:

    NG

    REPAIR OR REPLACE CORRESPONDING ECU OR SENSOR BRANCH LINE OR CONNECTOR

  22. CHECK FOR SHORT IN SUB BUS 2 LINE (NO. 2 CAN JUNCTION TERMINAL)
    1. Reconnect the U53 No. 7 CAN junction connector.
    2. Disconnect the O102 No. 2 CAN junction terminal connector.

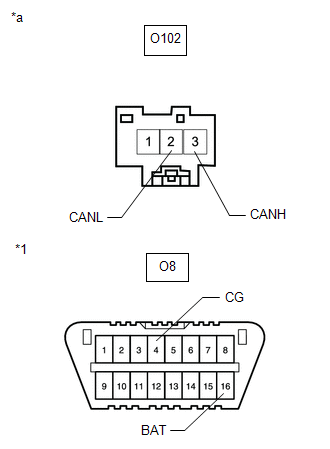

      GTY510491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3
      *a Front view of wire harness connector
      (to No. 2 CAN Junction Terminal)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      O102-3 (CANH) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground
      O102-2 (CANL) - O8-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      O102-3 (CANH) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short
      O102-2 (CANL) - O8-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short

      HINT:

      • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
      • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
