DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [09/2014 - 11/2017]: Wiring Diagram

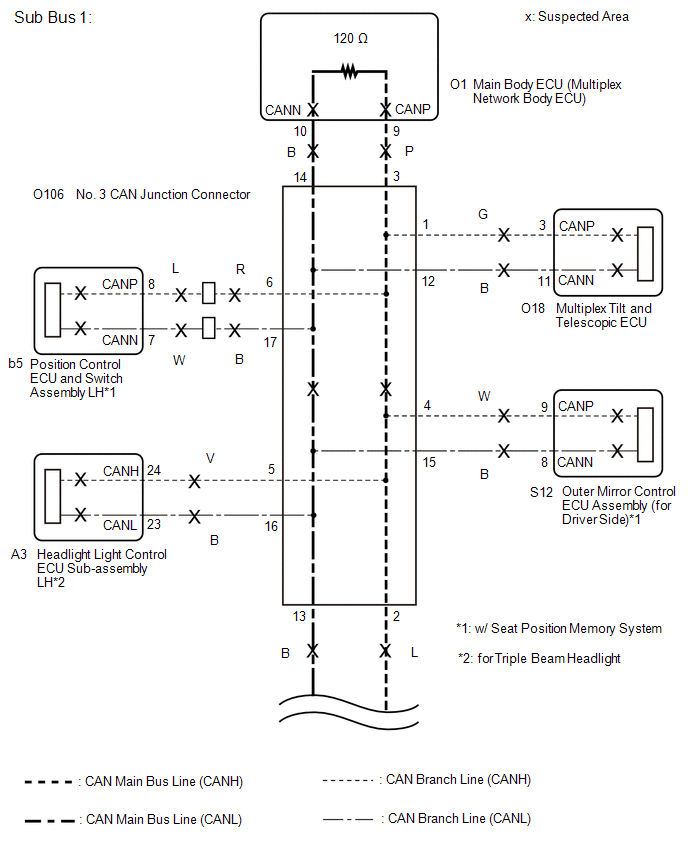

GTY505928

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

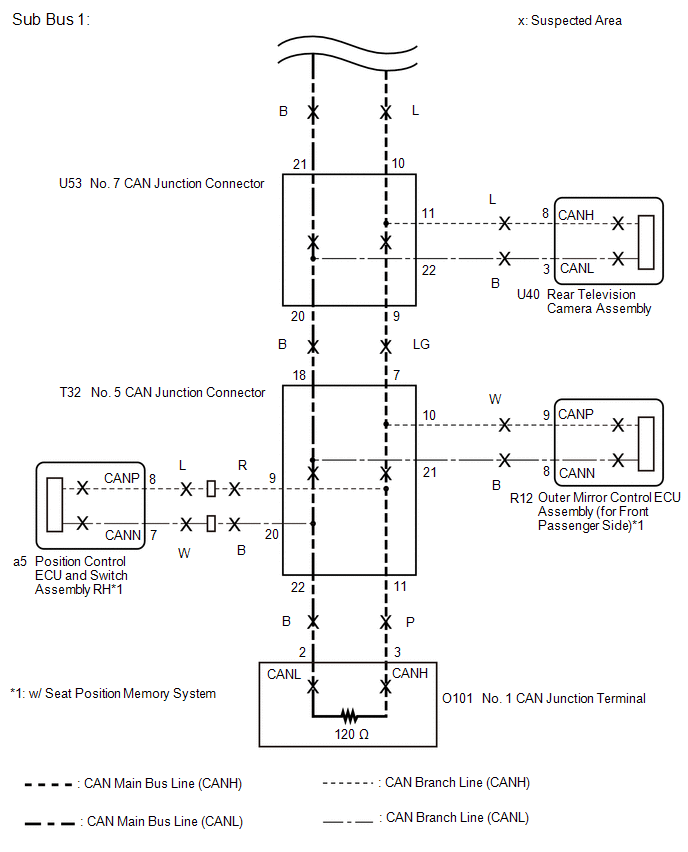

GTY535423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
