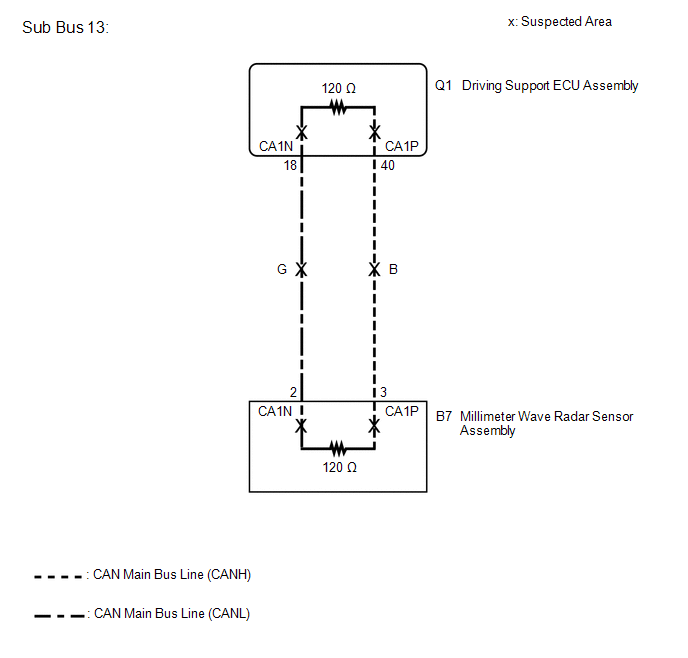

DTC U1002: Lost Communication with Gateway Module (Sensor Bus); DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor [09/2014 - 11/2017]: Wiring Diagram

GTY498573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
