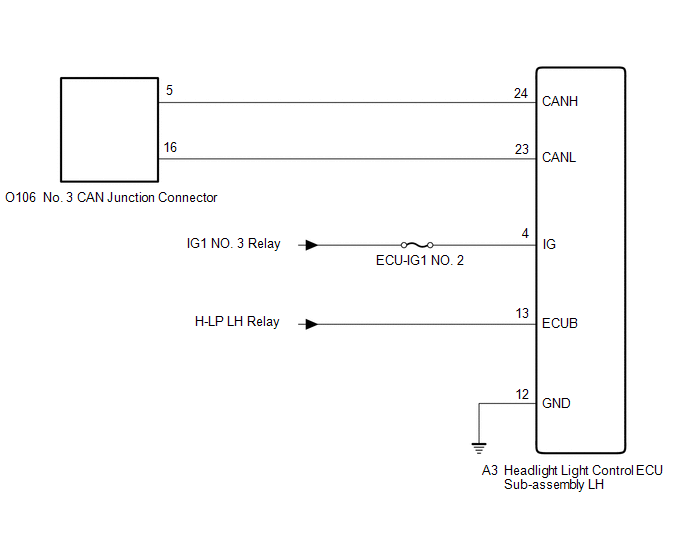

DTC U0182: Lost Communication with Lighting Control Module Front [11/2017 - 03/2019]: Wiring Diagram

GTY828472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
