Can Communication System - Diagnostic Codes (1 Of 3)
>>
Can Communication System
>>
DTC U0182: Lost Communication with Lighting Control Module Front [09/2014 - 11/2017]
>>

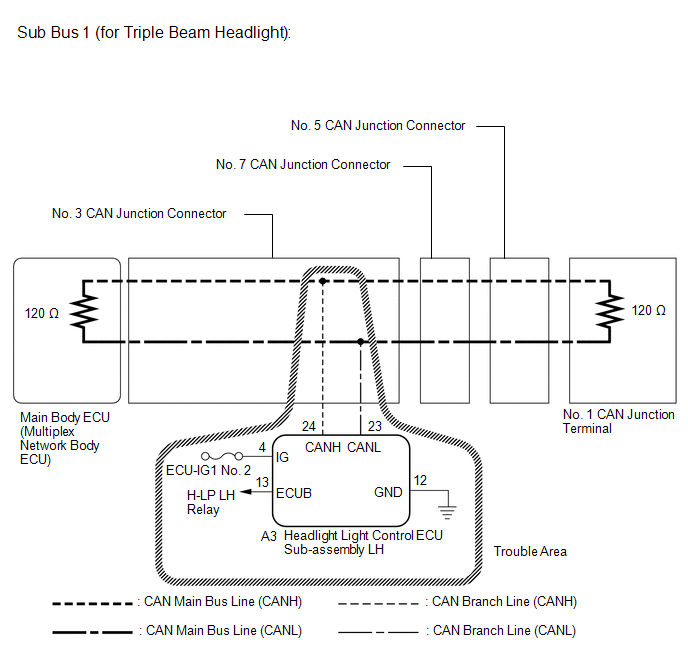

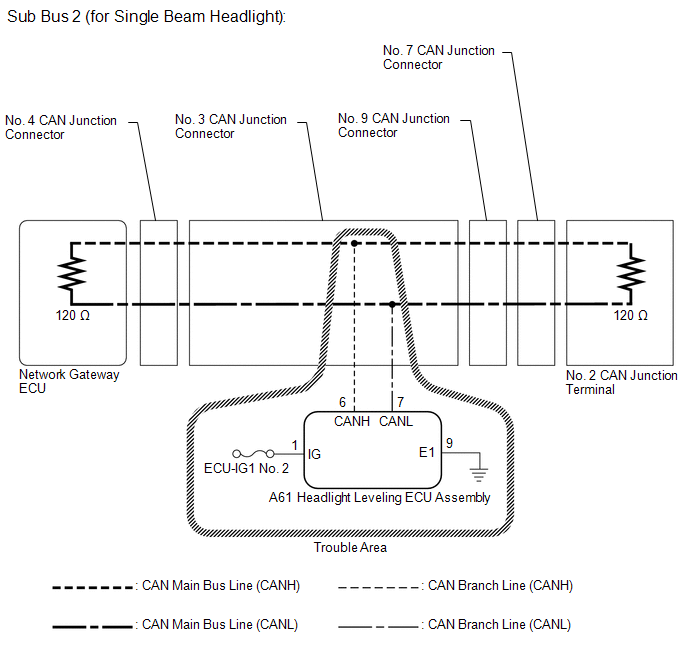

Wiring Diagram
DTC U0182: Lost Communication with Lighting Control Module Front [09/2014 - 11/2017]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
