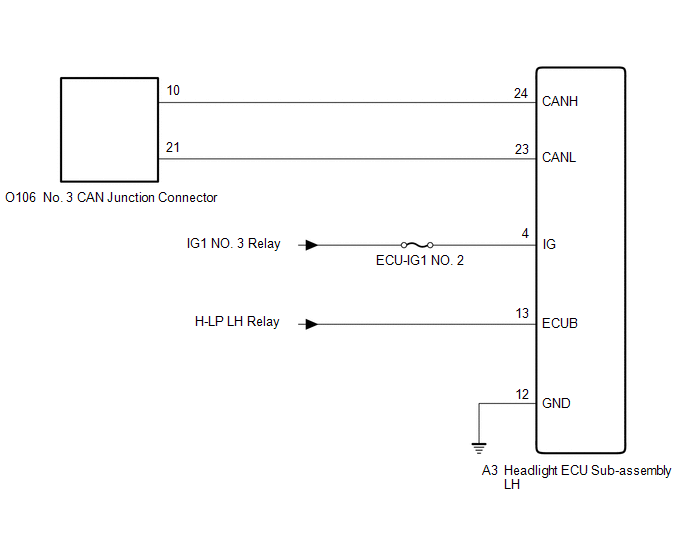

DTC U0182: Lost Communication with Lighting Control Module Front [03/2019 - ]: Wiring Diagram

GTY954927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
