System Diagram [09/2014 - 03/2019]

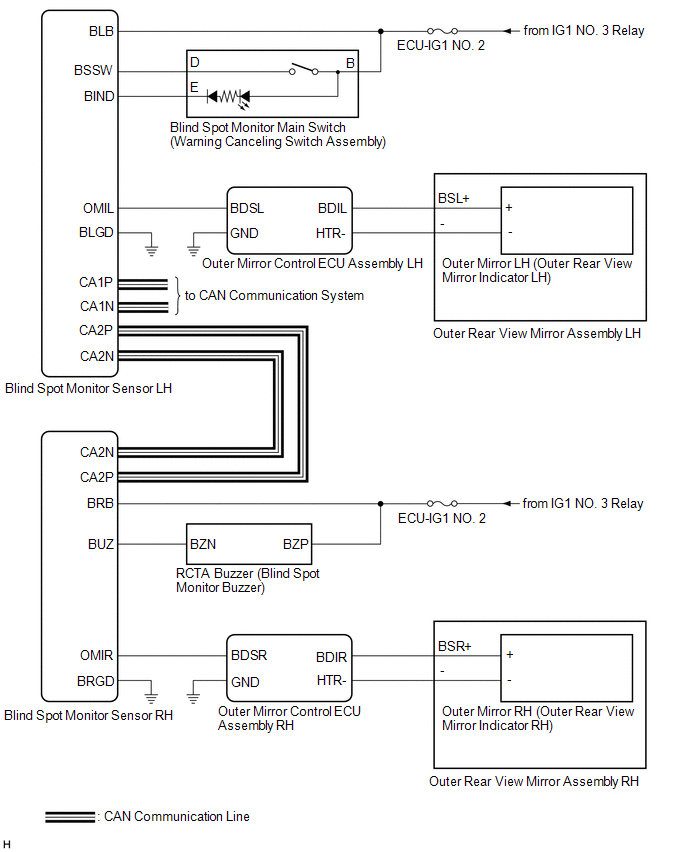

  1. w/ Seat Memory
    GTY787339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

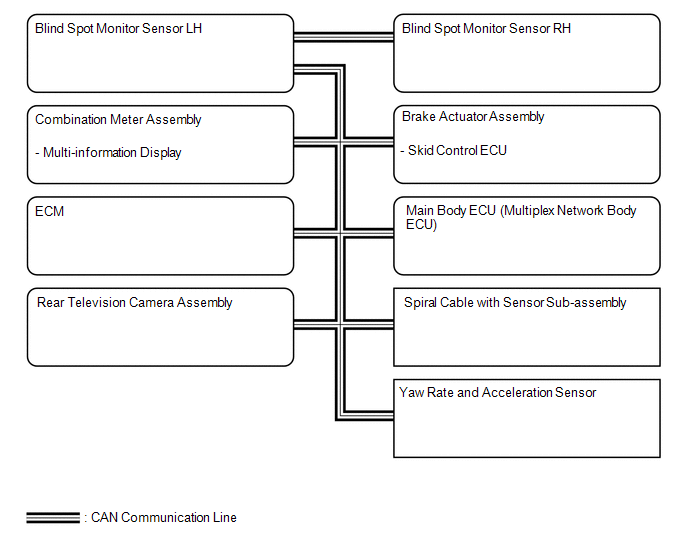

    GTY504257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

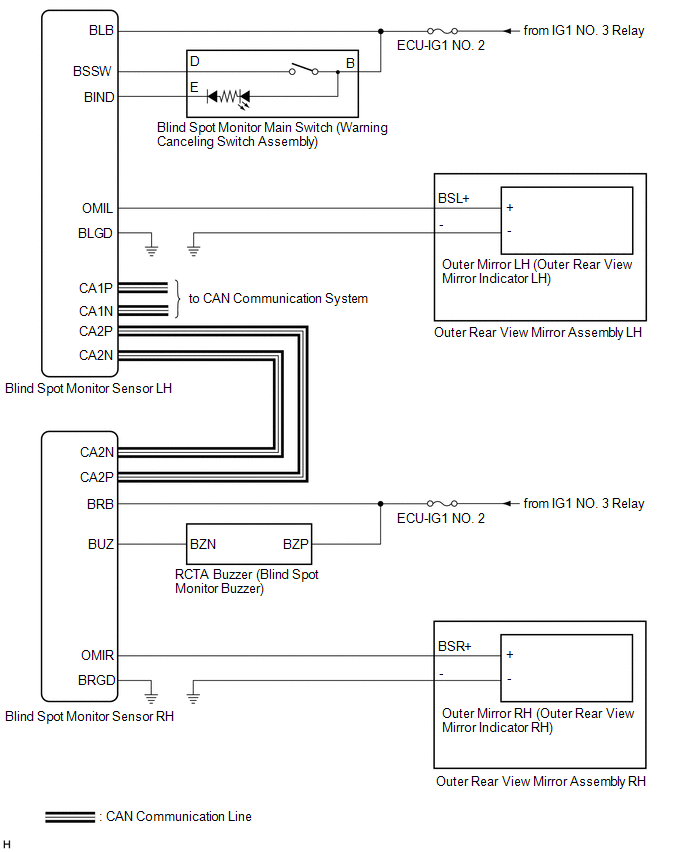

  2. w/o Seat Memory
    GTY791159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY504257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
