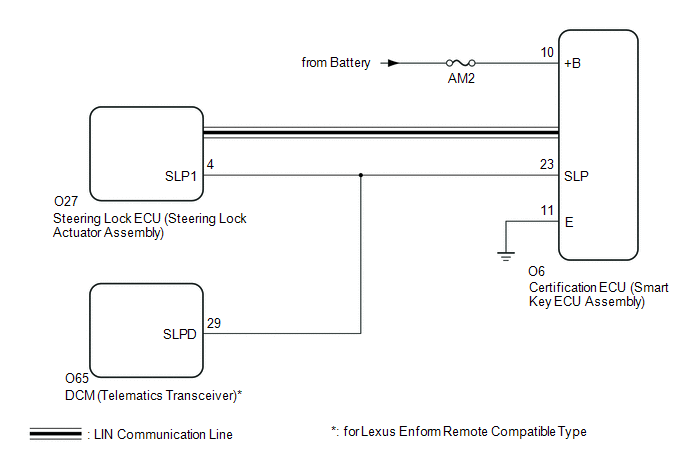

DTC B2285: Steering Lock Position Signal Circuit Malfunction [09/2014 - 09/2020]: Wiring Diagram

GTY508272

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
