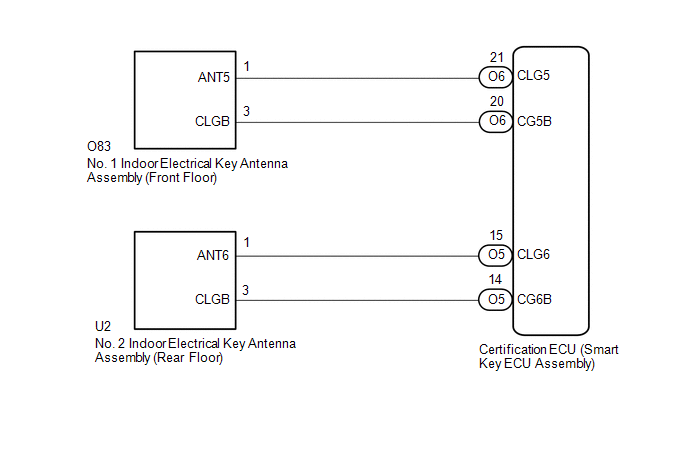

Room Oscillator does not Recognize Key [09/2014 - 01/2023]: Wiring Diagram

GTY506709

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
