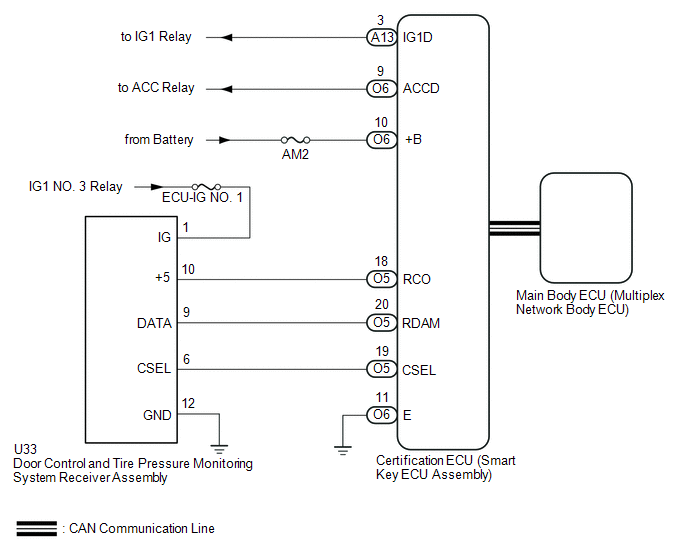

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [09/2014 - 03/2019]: Wiring Diagram

GTY515302

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
