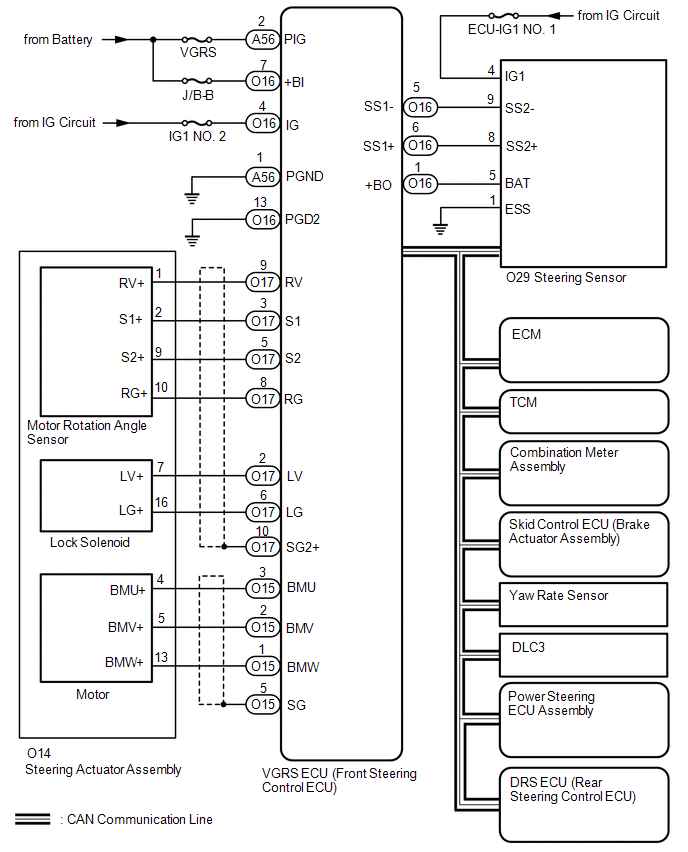

Home >> Lexus >> 2021 >> RC 350 Base, AWD >> Repair and Diagnosis >> Steering >> Power Steering >> Variable Gear Ratio Steering System - Diagnostics - Introduction >> Variable Gear Ratio Steering System >> System Diagram [09/2014 - 11/2017] >> System Diagram [09/2014 - 11/2017]
