Removal [09/2014 - ]: Procedure

Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - 10/2018] , or refer to PRECAUTION [10/2018 - 10/2022] , or refer to PRECAUTION [10/2022 - ]

Refer to REMOVAL [09/2014 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

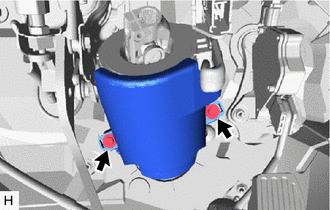

   Remove the 2 bolts and lower main shaft dust cover.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

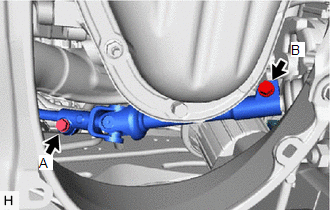

   Loosen the bolt (A).

   NOTE:

   Do not remove the bolt (A).

2. Remove the bolt (B).

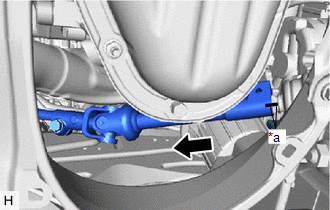

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   Slide the steering sliding yoke sub-assembly and put matchmarks on the steering sliding yoke sub-assembly and the power steering link assembly.

4. Separate the steering sliding yoke sub-assembly from the power steering link assembly.

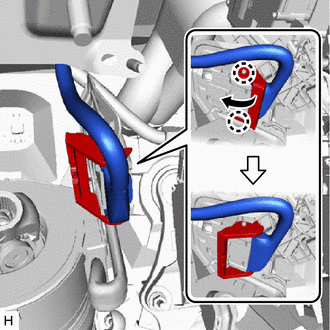

5. While pushing the claws on both sides of the connector, move the lock as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Disconnect the connector from the steering actuator assembly.

7. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

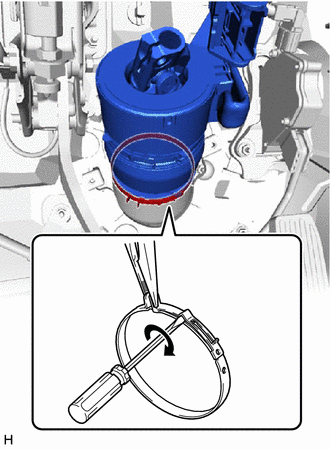

   Using a screwdriver and needle-nose pliers, loosen the clamp as shown in the illustration.

8. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   Put matchmarks on the steering actuator assembly and No. 1 steering column hole cover sub-assembly.

9. Remove the steering actuator assembly with the steering sliding yoke sub-assembly from the vehicle.

1. Put matchmarks on the steering sliding yoke sub-assembly and steering actuator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the bolt and steering sliding yoke sub-assembly.
