Installation [10/2015 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 ENGINE HANGER

    Refer to PROCEDURE - Step 81

  2. REMOVE ENGINE FROM ENGINE STAND
    1. Remove the engine assembly from the engine stand.
  3. INSTALL REAR NO. 1 ENGINE MOUNTING INSULATOR (for 2WD)

    HINT:

    Perform this procedure only when replacement of the rear No. 1 engine mounting insulator is necessary.

    1. Install the rear No. 1 engine mounting insulator to the No. 1 engine mounting bracket with the 4 nuts.

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

    2. Install the No. 1 engine mounting bracket to the automatic transmission assembly with the 4 bolts.

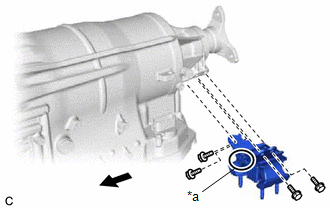

      GTY521083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw
      Vehicle Front

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

      HINT:

      Make sure that the claw is facing towards the front of the vehicle.

  4. INSTALL REAR NO. 1 ENGINE MOUNTING INSULATOR (for AWD)

    HINT:

    Perform this procedure only when replacement of the rear No. 1 engine mounting insulator is necessary.

    1. Install the rear No. 1 engine mounting insulator to the No. 1 engine mounting bracket with the bolt.

      Torque: 68.6 N.m (700 kgf/cm, 51 ft.lbf)

      GTY497817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark

      HINT:

      Make sure that the paint mark is orientated as shown in the illustration.

    2. Install the No. 1 engine mounting bracket to the automatic transmission with transfer assembly with the 3 bolts.

      Torque: 60 N.m (612 kgf/cm, 44 ft.lbf)

  5. INSTALL REAR ENGINE MOUNTING MEMBER (for 2WD)

    HINT:

    Perform this procedure only when replacement of the rear No. 1 engine mounting insulator is necessary.

    1. Install the rear engine mounting member to the rear No. 1 engine mounting insulator with the 4 nuts.

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

  6. INSTALL REAR ENGINE MOUNTING MEMBER (for AWD)

    HINT:

    Perform this procedure only when replacement of the rear No. 1 engine mounting insulator is necessary.

    1. Install the rear engine mounting member to the rear No. 1 engine mounting insulator with the 3 nuts.

      Torque: 38 N.m (387 kgf/cm, 28 ft.lbf)

  7. INSTALL FRONT ENGINE MOUNTING INSULATOR

    HINT:

    Perform this procedure only when replacement of the front engine mounting insulator is necessary.

    1. for 2WD:
      1. Install the 2 front engine mounting insulators to the front suspension crossmember sub-assembly with the 2 nuts.

        Torque: 70 N.m (714 kgf/cm, 52 ft.lbf)

    2. for AWD:
      1. Install the 2 front engine mounting insulators to the front frame assembly with the 4 nuts.

        Torque: 70 N.m (714 kgf/cm, 52 ft.lbf)

  8. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (for 2WD)
    1. Install the front suspension crossmember sub-assembly to the engine assembly with the 2 bolts

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  9. INSTALL FRONT FRAME ASSEMBLY (for AWD)
    1. Install the front frame assembly to the engine assembly with the 2 bolts.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  10. INSTALL FRONT DIFFERENTIAL CARRIER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 1

  11. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  12. INSPECT DRIVE PLATE (for 2WD)

    Refer to PROCEDURE - Step 2

  13. INSPECT DRIVE PLATE (for AWD)

    Refer to PROCEDURE - Step 2

  14. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 3

  15. INSTALL AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 4

  16. CONNECT WATER BY-PASS HOSE (for 2WD)

    Refer to PROCEDURE - Step 4

  17. CONNECT WATER BY-PASS HOSE (for AWD)

    Refer to PROCEDURE - Step 5

  18. CONNECT WIRE HARNESS (for 2WD)

    Refer to PROCEDURE - Step 5

  19. CONNECT WIRE HARNESS (for AWD)

    Refer to PROCEDURE - Step 6

  20. INSTALL DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT (for 2WD)

    Refer to PROCEDURE - Step 9

  21. INSTALL DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT (for AWD)

    Refer to PROCEDURE - Step 10

  22. INSTALL FLYWHEEL HOUSING SIDE COVER (for 2WD)

    Refer to PROCEDURE - Step 10

  23. INSTALL FLYWHEEL HOUSING SIDE COVER (for AWD)

    Refer to PROCEDURE - Step 11

  24. INSTALL STARTER ASSEMBLY

    Refer to PROCEDURE - Step 1

  25. INSTALL FRONT PROPELLER SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 1

  26. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 1

  27. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 2

  28. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE
    1. for 2WD:
      1. Install a new O-ring to the engine oil level dipstick guide.

        HINT:

        Apply a light coat of engine oil to the O-ring.

      2. Install the engine oil level dipstick guide with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      3. Connect the wire harness clamp to the engine oil level dipstick guide.
    2. for AWD:
      1. Install a new O-ring to the engine oil level dipstick guide.

        HINT:

        Apply a light coat of engine oil to the O-ring.

      2. Install the engine oil level dipstick guide with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  29. INSTALL ENGINE ASSEMBLY WITH TRANSMISSION (for 2WD)
    1. Set the engine assembly with transmission on an engine lifter.
      NOTE:
      • Using height adjustment attachments and plate lift attachments, keep the engine assembly with transmission horizontal.
      • Do not perform any procedure while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
      • To prevent the oil pan from deforming, do not place any attachments under the oil pan of the engine assembly with transmission.
    2. Remove the 4 bolts and 2 No. 1 engine hangers.
    3. Install the engine assembly with transmission to the vehicle.
      NOTE:

      Make sure that the engine assembly with transmission is clear of all wiring, hoses and the steering sliding with shaft yoke sub-assembly.

    4. Install the strut bar bracket reinforcement LH, strut bar bracket reinforcement RH and front suspension crossmember sub-assembly with the 6 bolts and 2 nuts.

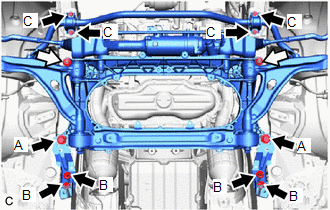

      GTY503441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Bolt (A)

      Torque: 194 N.m (1978 kgf/cm, 143 ft.lbf)

      Bolt (B)

      Torque: 57 N.m (581 kgf/cm, 42 ft.lbf)

      Nut

      Torque: 151 N.m (1540 kgf/cm, 111 ft.lbf)

    5. Install the front No. 2 stabilizer bracket LH and front No. 2 stabilizer bracket RH with the 4 bolts.

      Bolt (C)

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

    6. Install the rear engine mounting member to the vehicle body with the 4 bolts.

      Torque: 34.7 N.m (354 kgf/cm, 26 ft.lbf)

    7. Install the No. 2 earth wire to the vehicle body with the nut.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  30. INSTALL ENGINE ASSEMBLY WITH TRANSMISSION (for AWD)
    1. Set the engine assembly with transmission on an engine lifter.
      NOTE:
      • Using height adjustment attachments and plate lift attachments, keep the engine assembly with transmission horizontal.
      • Do not perform any procedure while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
      • To prevent the oil pan from deforming, do not place any attachments under the oil pan of the engine assembly with transmission.
    2. Remove the 4 bolts and 2 No. 1 engine hangers.
    3. Install the engine assembly with transmission to the vehicle.
      NOTE:

      Make sure that the engine assembly with transmission is clear of all wiring, hoses and the No. 2 steering intermediate shaft assembly.

    4. Install the strut bar bracket reinforcement LH, strut bar bracket reinforcement RH and front frame assembly with the 6 bolts and 2 nuts.

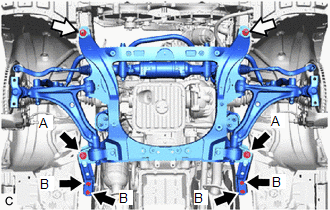

      GTY508497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Bolt (A), Nut

      Torque: 151 N.m (1540 kgf/cm, 111 ft.lbf)

      Bolt (B)

      Torque: 57 N.m (581 kgf/cm, 42 ft.lbf)

    5. Install the rear engine mounting member to the vehicle body with the 4 bolts.

      Torque: 34.7 N.m (354 kgf/cm, 26 ft.lbf)

    6. Install the No. 2 earth wire to the vehicle body with the nut.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  31. INSTALL FRONT SUSPENSION MEMBER BRACE (for AWD)
    1. Install the 2 front suspension member braces to the front frame assembly with the 4 bolts.

      Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)

  32. INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR (for 2WD)
    1. Install the front lower suspension member protector to the front suspension crossmember sub-assembly with the 4 bolts.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

  33. INSTALL FRONT UPPER NO. 2 SUSPENSION MEMBER (for 2WD)
    1. Install the 2 front upper No. 2 suspension members with the 6 bolts.

      Torque: 20 N.m (204 kgf/cm, 177 in.lbf)

  34. INSTALL SUSPENSION TOWER DAMPER (for 2WD)

    Refer to PROCEDURE - Step 1

  35. INSTALL NO. 2 FRAME CROSSMEMBER ASSEMBLY (for AWD)
    1. Install the No. 2 frame crossmember assembly with the 3 bolts.

      Torque: 20 N.m (204 kgf/cm, 177 in.lbf)

  36. INSTALL NO. 1 FRAME CROSSMEMBER ASSEMBLY (for AWD)
    1. Install the No. 1 frame crossmember assembly with the 3 bolts.

      Torque: 20 N.m (204 kgf/cm, 177 in.lbf)

  37. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 8

  38. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 9

  39. CONNECT WIRE HARNESS
    1. for 2WD:

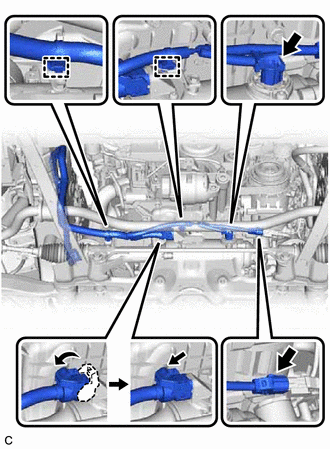

      GTY504100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the 2 wire harness clamps to the power steering link assembly.
      2. Connect the 3 wire harness connectors to the power steering link assembly.

        HINT:

        For the connector with lock lever, fully insert the connector and push down the lock lever to engage the lock.

    2. for AWD:

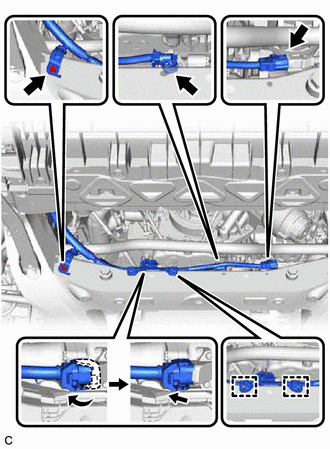

      GTY518952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the 3 wire harness connectors to the power steering link assembly.

        HINT:

        For the connector with lock lever, fully insert the connector and push down the lock lever to engage the lock.

      2. Connect the 2 wire harness clamps to the front frame assembly.
      3. Install the wire harness bracket to the front frame assembly with the bolt.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  40. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 2

  41. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH (for AWD)

    Refer to PROCEDURE - Step 3

  42. CONNECT FRONT LOWER BALL JOINT ASSEMBLY LH (for 2WD)

    Refer to PROCEDURE - Step 5

  43. CONNECT FRONT LOWER BALL JOINT ASSEMBLY RH (for 2WD)

    HINT:

    Perform the same procedure as for the LH side.

  44. CONNECT FRONT LOWER BALL JOINT ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 4

  45. CONNECT FRONT LOWER BALL JOINT ASSEMBLY RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  46. CONNECT FRONT SHOCK ABSORBER ASSEMBLY LH (for 2WD)
    1. Connect the front shock absorber assembly LH to the front suspension lower arm assembly LH with the bolt and nut.

      Torque: 108 N.m (1101 kgf/cm, 80 ft.lbf)

      NOTE:
      • Insert the bolt from the rear of the vehicle.
      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
  47. CONNECT FRONT SHOCK ABSORBER ASSEMBLY RH (for 2WD)

    HINT:

    Perform the same procedure as for the LH side.

  48. CONNECT FRONT SHOCK ABSORBER ASSEMBLY LH (for AWD)
    1. Connect the front shock absorber assembly LH to the front lower shock absorber bracket LH with the bolt.

      Torque: 48 N.m (489 kgf/cm, 35 ft.lbf)

  49. CONNECT FRONT SHOCK ABSORBER ASSEMBLY RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  50. CONNECT TIE ROD ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 6

  51. CONNECT TIE ROD ASSEMBLY RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  52. INSTALL FRONT DISC LH (for AWD)

    Refer to PROCEDURE - Step 1

  53. INSTALL FRONT DISC RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  54. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 7

  55. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  56. INSTALL FRONT SPEED SENSOR LH (for AWD)

    Refer to PROCEDURE - Step 14

  57. INSTALL FRONT SPEED SENSOR RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  58. INSTALL FRONT AXLE SHAFT NUT LH (for AWD)

    Refer to PROCEDURE - Step 12

  59. INSTALL FRONT AXLE SHAFT NUT RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  60. INSTALL STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 8

  61. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 9

  62. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  63. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 2WD)

    Refer to INSTALLATION [09/2014 - 11/2017]

  64. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to INSTALLATION [09/2014 - ]

  65. INSTALL NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 3

  66. CONNECT NO. 2 FUEL TUBE SUB-ASSEMBLY
    1. Connect the No. 2 fuel tube sub-assembly to the fuel pipe and slide the clip to secure it.

      Refer to PRECAUTION [09/2014 - 11/2017]

    2. Install the fuel pipe clamp.
  67. CONNECT NO. 3 FUEL HOSE
    1. Connect the No. 3 fuel hose to the No. 1 fuel pipe sub-assembly and slide the clip to secure it.
  68. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. Connect the fuel tube sub-assembly to the fuel pipe and slide the clip to secure it.

      Refer to PRECAUTION [09/2014 - 11/2017]

    2. Install the fuel pipe clamp.
  69. CONNECT WIRE HARNESS
    1. Engine room LH side:
      1. Connect the engine wire to the engine room ECU box.

        Refer to PROCEDURE - Step 4

      2. Connect the engine wire clamp.
    2. Engine room RH side:
      1. Connect the No. 3 engine wire to the vehicle body with the bolt.

        Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

      2. Connect the No. 3 engine wire clamp.
      3. Engage the 2 claws and connect the No. 4 engine wire to the No. 1 engine room relay block and No. 1 junction block assembly.
      4. Install the nut to the No. 1 engine room relay block and No. 1 junction block assembly.

        Torque: 10.5 N.m (107 kgf/cm, 8 ft.lbf)

      5. Connect the 2 No. 4 engine wire clamps.
      6. Install the No. 1 engine room relay block cover to the No. 1 engine room relay block and No. 1 junction block assembly.
      7. Connect the No. 2 engine wire to the positive (+) battery terminal with the nut.

        Torque: 7.6 N.m (77 kgf/cm, 67 in.lbf)

      8. Connect the No. 2 engine wire clamp.
      9. Connect the No. 1 center cowl top ventilator louver to the cowl top ventilator louver sub-assembly.
  70. INSTALL ENGINE ROOM ECU COVER

    Refer to PROCEDURE - Step 5

  71. CONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE (for 2WD)

    Refer to PROCEDURE - Step 7

  72. CONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE (for AWD)

    Refer to PROCEDURE - Step 7

  73. CONNECT SUCTION HOSE (for 2WD)

    Refer to PROCEDURE - Step 5

  74. CONNECT SUCTION HOSE (for AWD)

    Refer to PROCEDURE - Step 6

  75. CONNECT OUTLET HEATER WATER HOSE A
    1. Connect the outlet heater water hose A to the No. 3 water by-pass pipe and slide the clip to secure it.
  76. CONNECT INLET HEATER WATER HOSE A
    1. Connect the inlet heater water hose A to the No. 3 water by-pass pipe and slide the clip to secure it.
  77. CONNECT NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 3

  78. INSTALL NO. 1 RADIATOR HOSE

    Refer to PROCEDURE - Step 9

  79. CONNECT RADIATOR RESERVE TANK HOSE
    1. Connect the radiator reservoir tank hose to the water inlet sub-assembly and slide the clip to secure it.
  80. CONNECT NO. 2 FUEL VAPOR FEED HOSE
    1. Connect the No. 2 fuel vapor feed hose to the purge valve (purge VSV) and slide the clip to secure it.
  81. CONNECT UNION TO CHECK VALVE HOSE
    1. Connect the union to check valve hose to the intake air surge tank assembly and slide the clip to secure it.
  82. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
    1. Connect the air cleaner assembly with air cleaner hose to the throttle body with motor assembly.

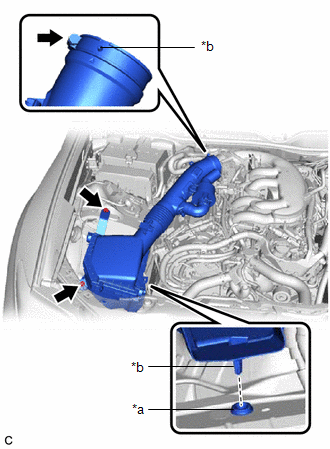

      GTY516825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Air Cleaner Support
      *b Protrusion
    2. Fit the protrusion of the air cleaner assembly with air cleaner hose into the air cleaner support as shown in the illustration.
    3. Install the 2 bolts.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

    4. Tighten the hose clamp.

      Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

      NOTE:

      Fit the protrusion on the air cleaner hose into the hole of the hose clamp on the throttle body with motor assembly side.

    5. Connect the No. 2 fuel vapor feed hose clamp to the air cleaner assembly with air cleaner hose.
    6. Connect the 2 wire harness clamps to the air cleaner assembly with air cleaner hose.
    7. Connect the mass air flow meter sub-assembly connector.
  83. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the air cleaner case sub-assembly is necessary.

    1. Fit the protrusion of the air cleaner case sub-assembly into the air cleaner support as shown in the illustration.

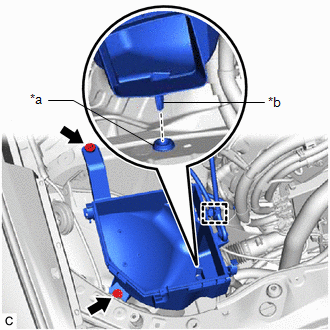

      GTY495856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Air Cleaner Support
      *b Protrusion
    2. Install the air cleaner case sub-assembly with the 2 bolts.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

    3. Connect the wire harness clamp to the air cleaner case sub-assembly.
  84. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the air cleaner filter element sub-assembly is necessary.

    1. Install the air cleaner filter element sub-assembly to the air cleaner case sub-assembly.
  85. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    HINT:

    Perform this procedure only when replacement of the air cleaner filter element sub-assembly or air cleaner case sub-assembly is necessary.

    Refer to PROCEDURE - Step 3

  86. CONNECT NO. 2 VENTILATION HOSE

    Refer to PROCEDURE - Step 4

  87. INSTALL INLET NO. 1 AIR CLEANER
    1. Install the inlet No. 1 air cleaner with the bolt.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

  88. ADD ENGINE OIL

    Refer to PROCEDURE - Step 7

  89. ADD DIFFERENTIAL OIL (for AWD)

    Refer to PROCEDURE - Step 2

  90. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    1. Connect the cable to the negative (-) battery terminal with the nut.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [10/2015 - 11/2017]

  91. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 6

  92. ADD AUTOMATIC TRANSMISSION FLUID (for 2WD)

    Refer to ADJUSTMENT [10/2015 - 11/2017]

  93. ADD AUTOMATIC TRANSMISSION FLUID (for AWD)

    Refer to ADJUSTMENT [09/2014 - 11/2017]

  94. INSPECT FOR REFRIGERANT

    Refer to PROCEDURE - Step 1

  95. INSPECT SHIFT LEVER POSITION (for 2WD)

    Refer to PROCEDURE - Step 1

  96. INSPECT SHIFT LEVER POSITION (for AWD)

    Refer to PROCEDURE - Step 1

  97. ADJUST SHIFT LEVER POSITION (for 2WD)

    Refer to PROCEDURE - Step 3

  98. ADJUST SHIFT LEVER POSITION (for AWD)

    Refer to PROCEDURE - Step 3

  99. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  100. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 8

  101. INSPECT FOR FUEL LEAK

    Refer to ON-VEHICLE INSPECTION [09/2014 - 11/2017]

  102. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 13

  103. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 4

  104. INSTALL FRONT WHEELS

    Refer to PROCEDURE - Step 1

  105. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  106. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [09/2014 - 11/2017]

  107. PERFORM INITIALIZATION

    Refer to INITIALIZATION [10/2015 - 11/2017]

  108. INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  109. INSPECT IGNITION TIMING

    Refer to PROCEDURE - Step 8

  110. INSPECT ENGINE IDLE SPEED

    Refer to PROCEDURE - Step 9

  111. INSPECT CO/HC

    Refer to PROCEDURE - Step 11

  112. INSPECT ENGINE COOLANT LEVEL IN RESERVOIR

    Refer to PROCEDURE - Step 2

  113. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1

  114. INSTALL FRONT SUSPENSION MEMBER BRACE (for 2WD)
    1. Install the front suspension member brace with the clip and 6 bolts.

      Torque: 52 N.m (530 kgf/cm, 38 ft.lbf)

  115. INSTALL REAR ENGINE UNDER COVER LH (for 2WD)
    1. Install the rear engine under cover LH with the screw.
  116. INSTALL REAR ENGINE UNDER COVER RH (for 2WD)

    HINT:

    Perform the same procedure as for the LH side.

  117. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
    1. for 2WD:
      1. Install the No. 1 engine under cover assembly with the 13 screws and 3 clips.
    2. for AWD:
      1. Install the No. 1 engine under cover assembly with the 10 screws and 3 clips.
  118. INSTALL V-BANK COVER SUB-ASSEMBLY
    1. Attach the 3 clips in the order shown in the illustration to install the V-bank cover sub-assembly.

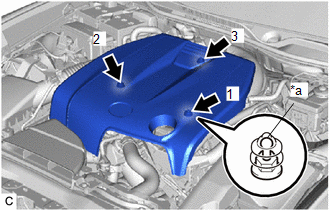

      GTY521368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Tip (Sphere)
      NOTE:
      • Securely attach the clips.
      • If the clips are forcibly attached or struck with an object, they may be damaged.
      • Do not apply any oil to the tips (sphere).
  119. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

  120. INSTALL ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 3

scientia non olet · About LEMON Manuals
