Components [11/2017 - ]

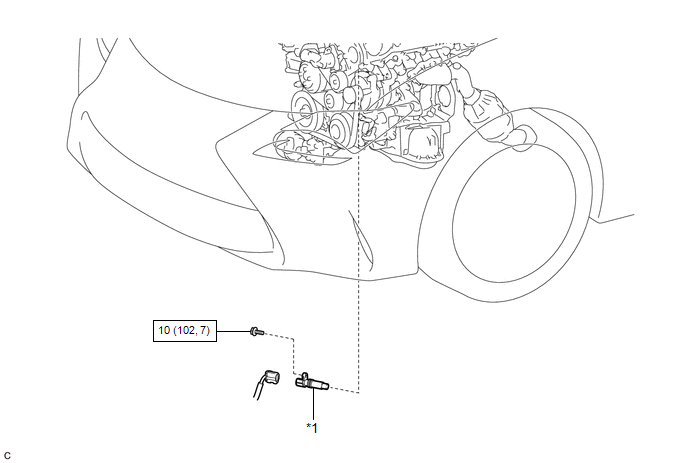

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY791635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR - -
N.m (kgf/cm, ft.lbf): Specified torque - -
