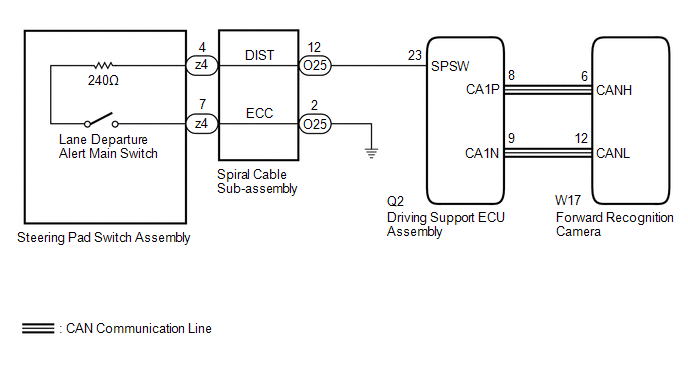

Steering Pad Switch Circuit [11/2017 - 10/2022]: Wiring Diagram

GTY832713

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
