ECM Communication Stop Mode [11/2017 - ]: Procedure

1. Check vehicle type.

   Result

   Result	Proceed to
   for 8AR-FTS	A
   for 2GR-FKS	B

Result:

B

See step  4

Result:

A

See step  2

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the A82 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to ECM)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A82-13 (CANH) - A82-26 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM)

Result:

OK

See step  3

1. Check the ECM power source circuit.

   Refer to ECM Power Source Circuit [10/2015 - ]

   Result

   Result
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  REMOVAL [10/2015 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

1. Disconnect the cable from the negative (-) battery terminal.

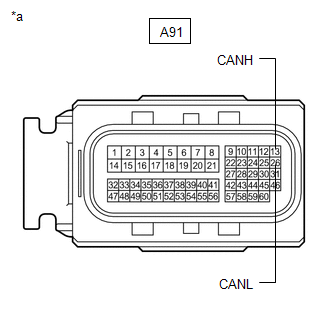

2. Disconnect the A91 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to ECM)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A91-13 (CANH) - A91-26 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM)

Result:

OK

See step  5

1. Check the ECM power source circuit.

   Refer to ECM Power Source Circuit [11/2017 - ]

   Result

   Result
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  REMOVAL [11/2017 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
