Components [10/2014 - 09/2015]

Fig 1: Tilt And Telescopic Manual Switch Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Compact Spare Tire	*B	for Full Size Spare Tire
*1	DECK FLOOR BOX LH	*2	REAR DECK FLOOR BOX
*3	NO. 3 DECK BOARD SUB-ASSEMBLY	*4	NEGATIVE AUXILIARY BATTERY TERMINAL
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

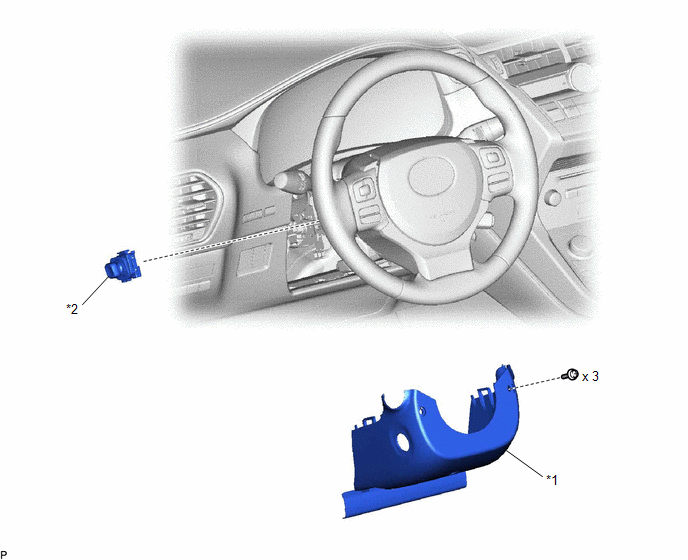

Fig 2: Tilt And Telescopic Manual Switch Replacement Components (2 Of 2)

LOWER STEERING COLUMN COVER

TILT AND TELESCOPIC SWITCH
