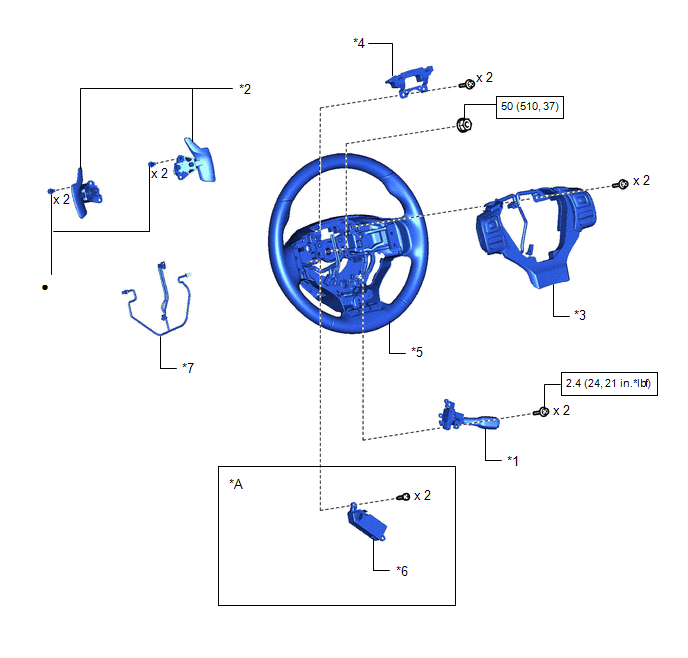

Components [09/2017 - ]
| Callout | Description | Callout | Description |
| *A | w/ Steering Heater | - | - |
| *1 | CRUISE CONTROL MAIN SWITCH | *2 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | STEERING SHAKE DAMPER |
| *5 | STEERING WHEEL ASSEMBLY | *6 | STEERING WHEEL HEATER CONTROL ASSEMBLY |
| *7 | SWITCH NO. 1 WIRE | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
