Removal [10/2014 - 09/2017]: Procedure

  1. REMOVE STEERING PAD

    Refer to REMOVAL [10/2014 - 05/2019]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 2 screws.

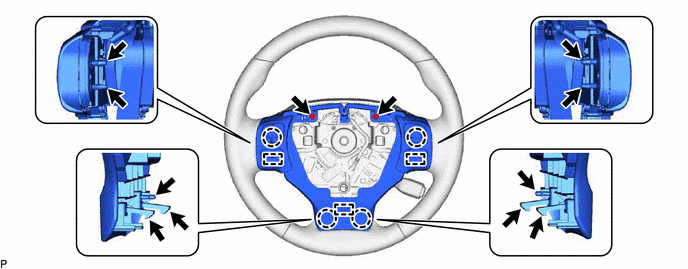

      GTY505887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 3 guide pins and 4 claws and remove the switch assembly.
