Components [10/2014 - 09/2017]

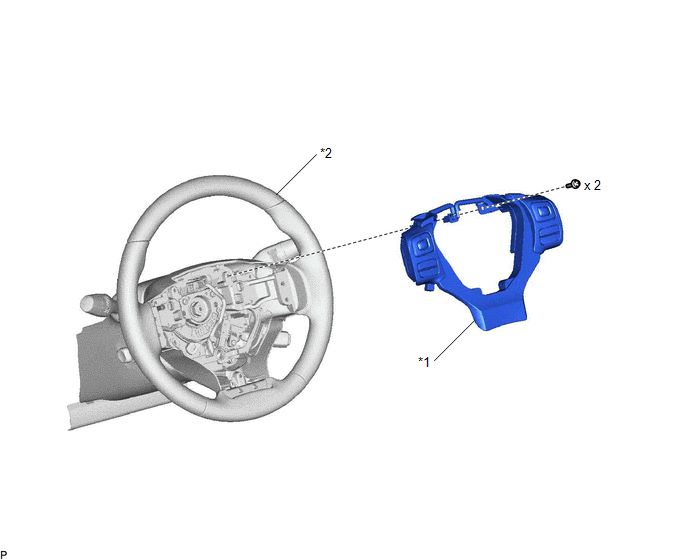

Fig 1: Identifying Steering Pad Switch Replacement Components

GTY512974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

STEERING PAD SWITCH ASSEMBLY

*2

STEERING WHEEL ASSEMBLY
