Components [10/2014 - ]

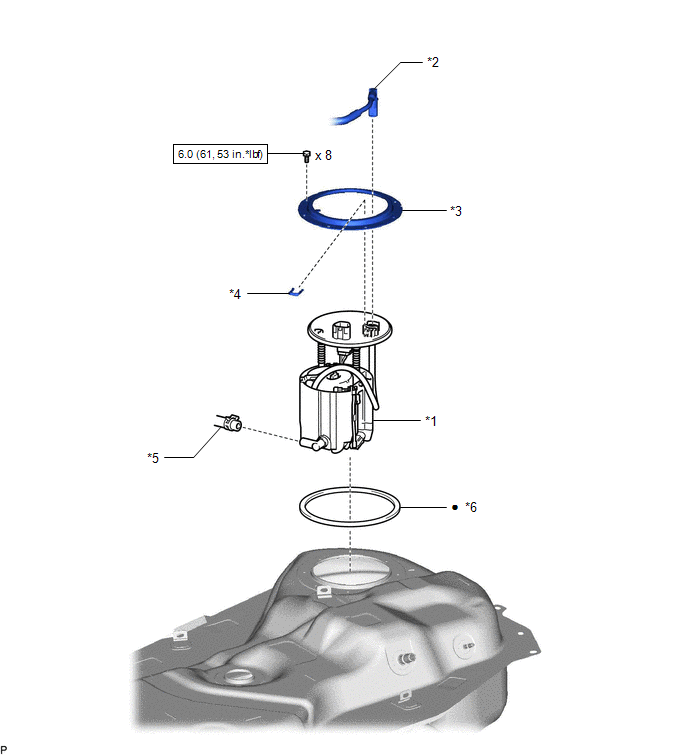

| Callout | Description | Callout | Description |
| *1 | FUEL SUCTION TUBE ASSEMBLY | *2 | FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 | FUEL TANK VENT TUBE SET PLATE | *4 | TUBE JOINT CLIP |
| *5 | FUEL HOSE | *6 | GASKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

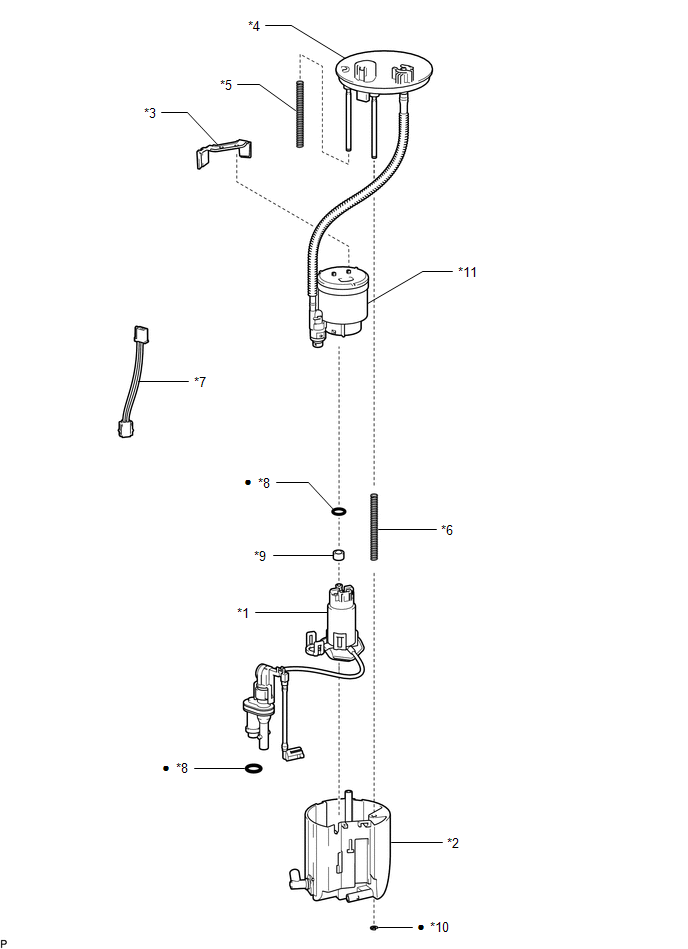

| Callout | Description | Callout | Description |
| *1 | FUEL PUMP ASSEMBLY WITH FILTER | *2 | NO. 1 FUEL SUB-TANK |
| *3 | NO. 1 FUEL SUCTION SUPPORT | *4 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *5 | NO. 2 FUEL TANK CUSHION | *6 | NO. 3 FUEL TANK CUSHION |
| *7 | FUEL PUMP HARNESS | *8 | O-RING |
| *9 | FUEL PUMP SPACER | *10 | FUEL TANK PIPE SETTING HOLDER |
| *11 | FUEL FILTER ASSEMBLY | - | - |
| • | Non-reusable part | - | - |
