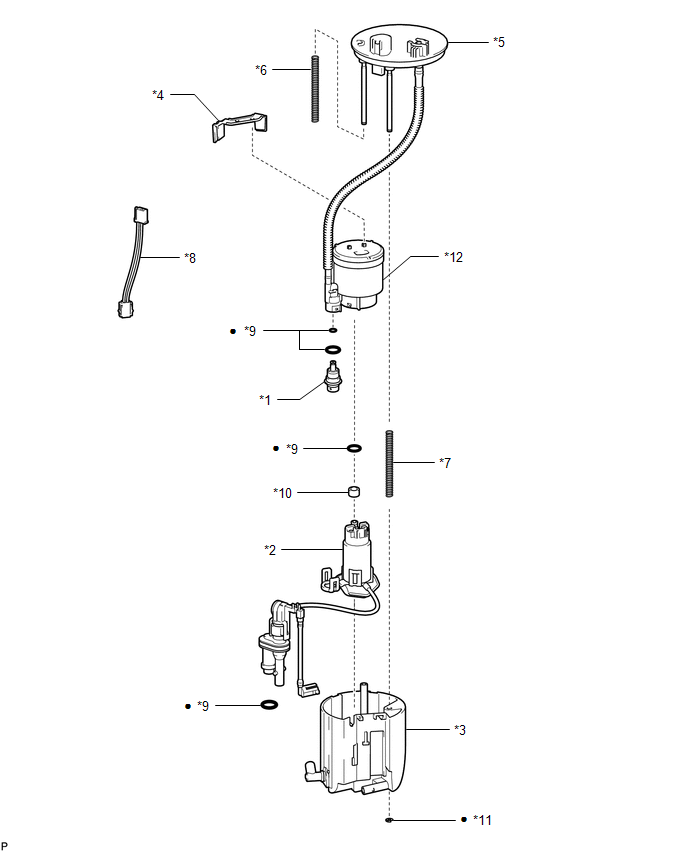

Components [10/2014 - ]
| *1 | FUEL PRESSURE REGULATOR ASSEMBLY | *2 | FUEL PUMP ASSEMBLY WITH FILTER |
| *3 | NO. 1 FUEL SUB-TANK | *4 | NO. 1 FUEL SUCTION SUPPORT |
| *5 | FUEL SUCTION PLATE SUB-ASSEMBLY | *6 | NO. 2 FUEL TANK CUSHION |
| *7 | NO. 3 FUEL TANK CUSHION | *8 | FUEL PUMP HARNESS |
| *9 | O-RING | *10 | FUEL PUMP SPACER |
| *11 | FUEL TANK PIPE SETTING HOLDER | *12 | FUEL FILTER ASSEMBLY |
| • | Non-reusable part | - | - |
