Components [10/2014 - ]

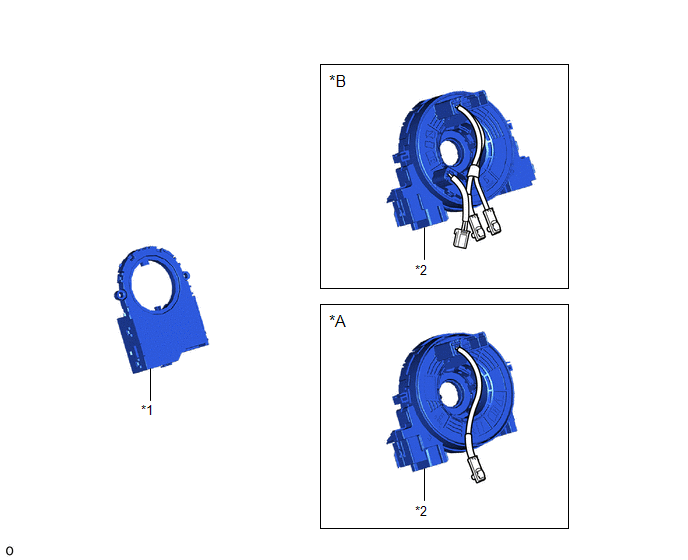

Fig 1: Steering Angle Sensor Replacement Components
GTY950682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Steering Heater *B w/ Steering Heater
*1 STEERING SENSOR *2 SPIRAL CABLE SUB-ASSEMBLY
