Removal [10/2014 - ]: Procedure

  1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 8 [10/2014 - 05/2019], or refer to PROCEDURE - Step 8 [05/2019 - ]

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

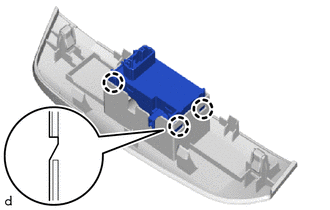

    1. GTY515012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 3 claws and remove the rear power window regulator switch assembly.
