Windows / Glass (Service Information)
>>
Power Window Master Switch
>>
Components [10/2014 - ]
Components [10/2014 - ]

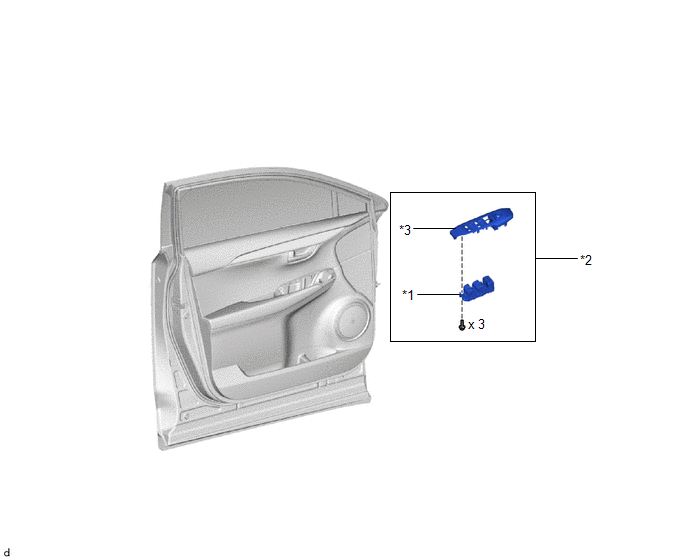

Fig 1: Power Window Master Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
*2
POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
*3
FRONT DOOR ARMREST BASE PANEL
-
-
