Inspection [10/2014 - 09/2017]: Procedure
- INSPECT SKID CONTROL BUZZER (DRIVING SUPPORT BUZZER)

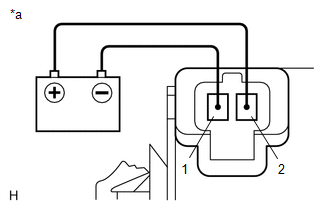

*a Component without harness connected
(Skid Control Buzzer (Driving Support Buzzer))- Apply battery voltage to the skid control buzzer (driving support buzzer), and check that the buzzer sounds.OK
Measurement Condition Specified Condition Battery positive (+) → Terminal 2 (IG1) Skid control buzzer (driving support buzzer) sounds Battery negative (-) → Terminal 1 (BZ) If the result is not as specified, replace the skid control buzzer (driving support buzzer).
- Apply battery voltage to the skid control buzzer (driving support buzzer), and check that the buzzer sounds.
