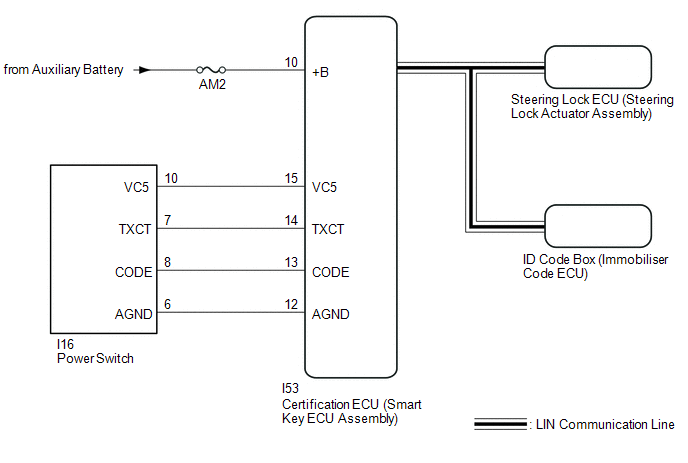

New Key cannot be Registered [10/2014 - ]: Wiring Diagram

GTY516808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
