Removal [10/2014 - 09/2017]: Procedure

Refer to REMOVAL [10/2014 - 05/2019]

1. Disconnect the connectors from the turn signal switch assembly with spiral cable.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

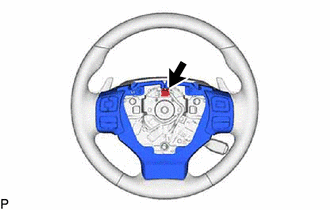

2. w/ Steering Heater:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Disconnect the connector of steering heater control assembly from the turn signal switch assembly with spiral cable.

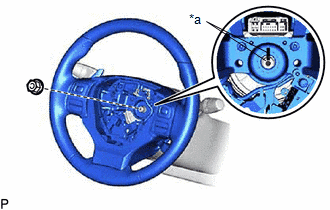

3. Remove the steering wheel assembly set nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

4. Put matchmarks on the steering wheel assembly and steering main shaft.

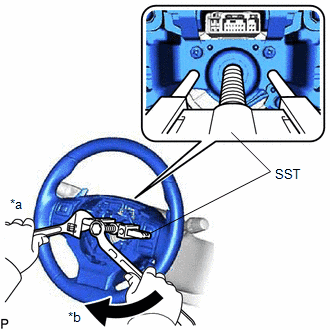

5. Using SST, remove the steering wheel assembly.
   • SST: 09950-50013
     1. 09951-05010
     2. 09952-05010
     3. 09953-05020
     4. 09954-05021

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   *b	Turn

   NOTE:

   Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

See step  2

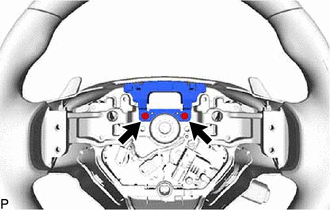

1. Remove the 2 screws and steering shake damper from the steering wheel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 2 [10/2014 - 09/2017]

1. Remove the cruise control switch wire from the cruise control main switch.

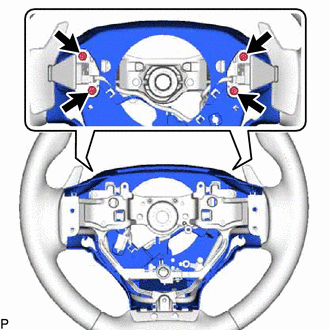

1. Remove the 4 screws and transmission shift switch assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  5
