Components [10/2014 - 09/2017]

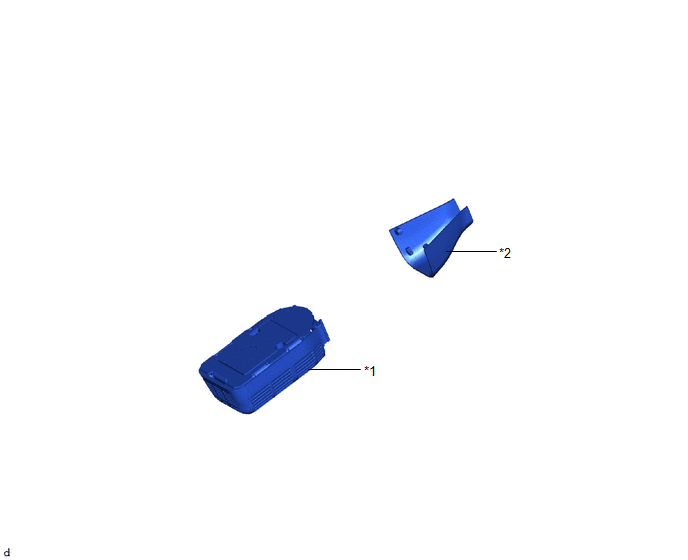

Fig 1: Humidity Sensor Replacement Components [10/2014 - 09/2017]
GTY499342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR CONDITIONING THERMISTOR ASSEMBLY (HUMIDITY SENSOR) *2 PROTECTOR
