Air Conditioning System - Service Information
>>
Humidity Sensor
>>
Components [09/2017 - ]
Components [09/2017 - ]

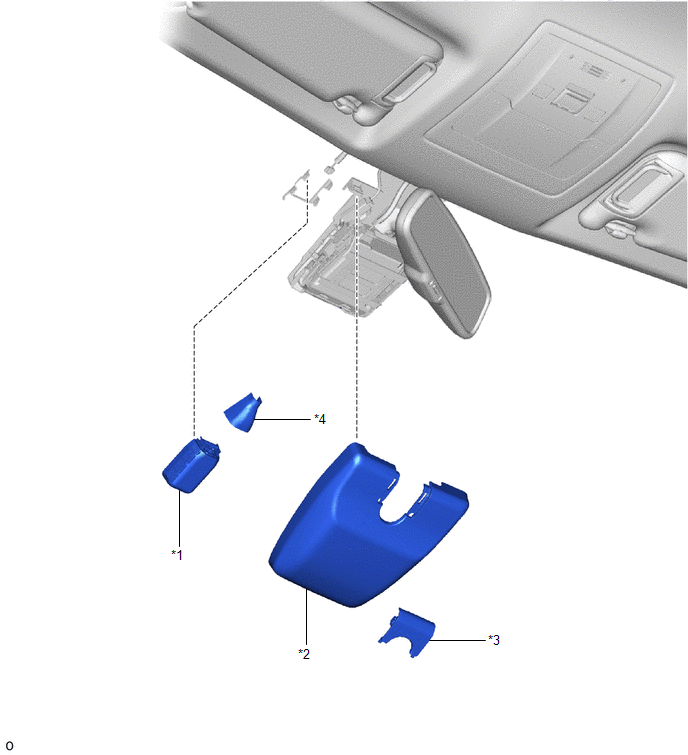

Fig 1: Humidity Sensor Replacement Components [09/2017 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
AIR CONDITIONING THERMISTOR ASSEMBLY (HUMIDITY SENSOR)
*2
NO. 1 FORWARD RECOGNITION COVER
*3
NO. 2 FORWARD RECOGNITION COVER
*4
PROTECTOR
